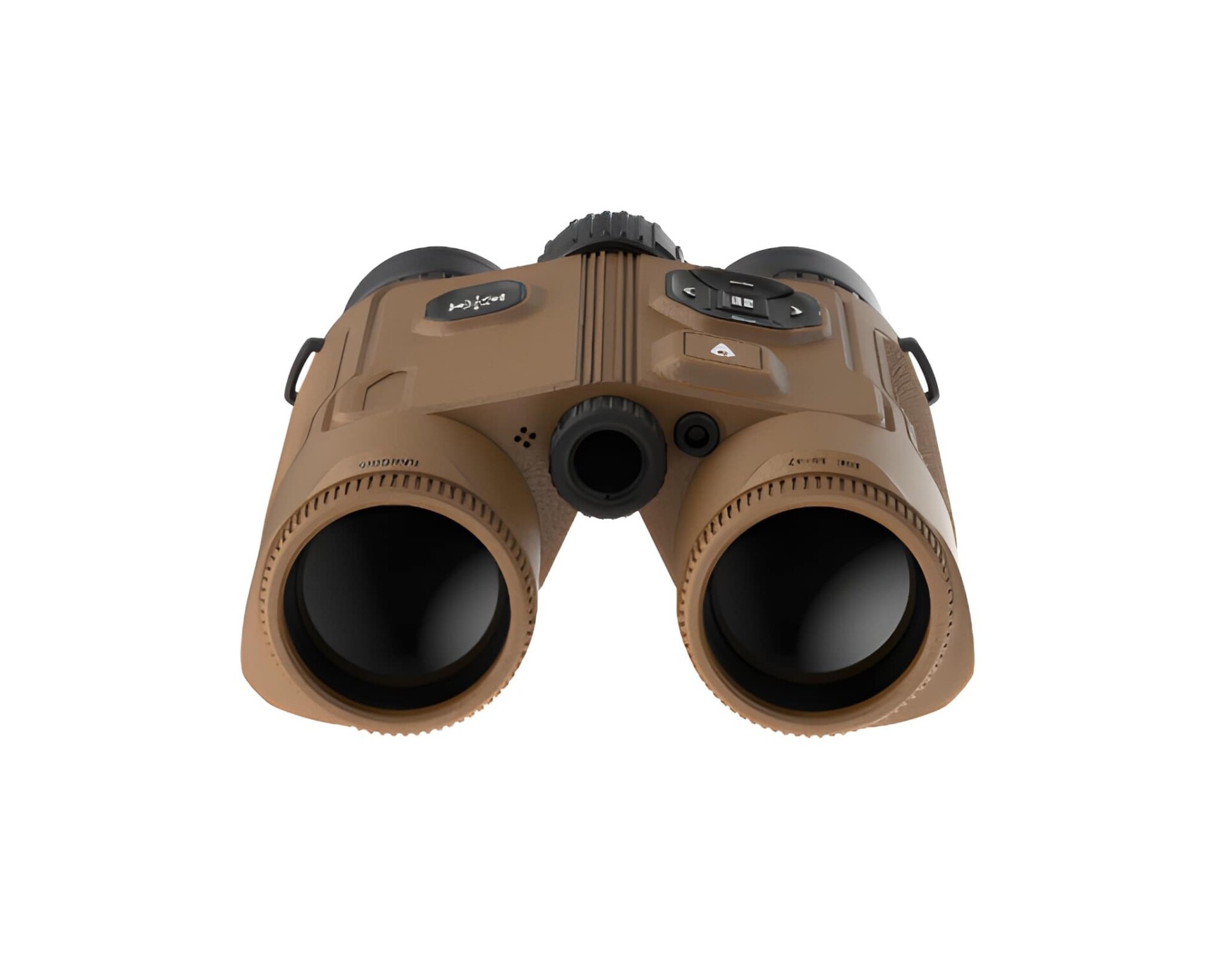

FTM-BRF Binocular Laser Rangefinder - Image 2

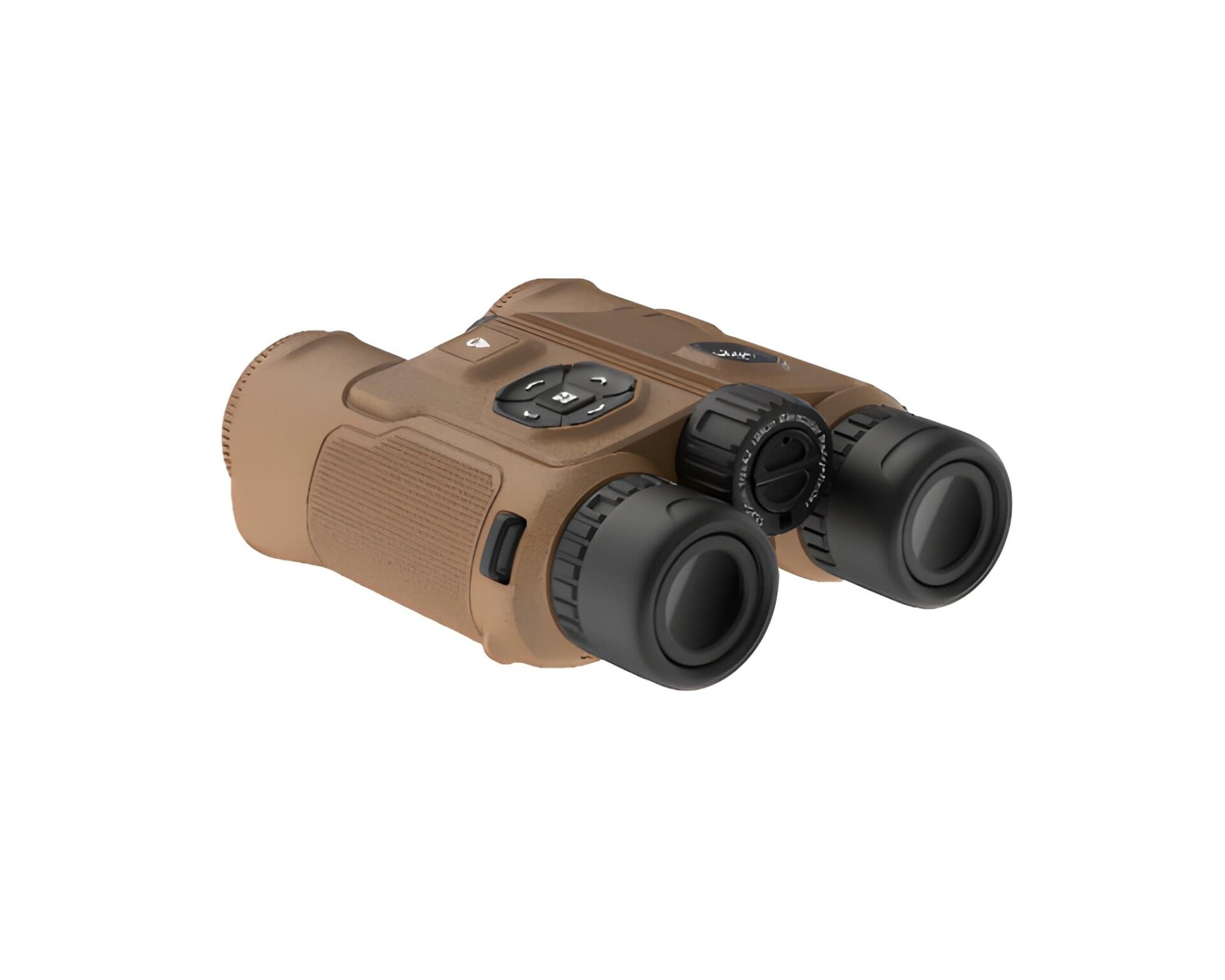

FTM-BRF Binocular Laser Rangefinder - Image 3

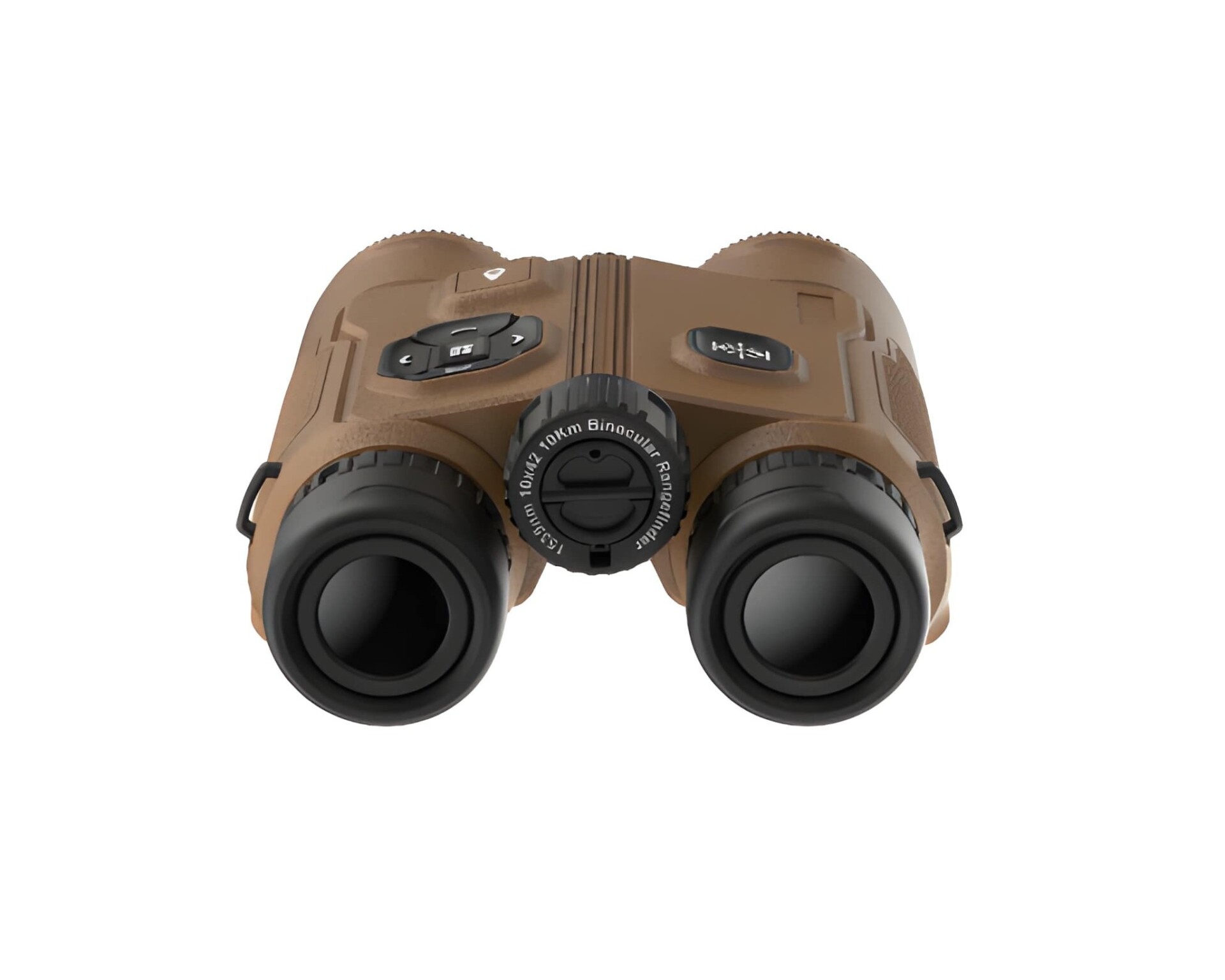

FTM-BRF Binocular Laser Rangefinder - Image 4
FTM-BRF Binocular Laser Rangefinder - Image 5

FTM-BRF Binocular Laser Rangefinder

The FTM-BRF is a high‑precision handheld observation system combining a straight‑tube hinged binocular with a 1535 nm laser rangefinder.

It integrates ballistic computation, satellite positioning and navigation, an electronic compass, environmental sensors, and an OLED display, enabling a complete workflow from target acquisition and accurate ranging to ballistic solution, target localization, and FOS tasks. The device offers long‑distance measurement with high accuracy and supports connectivity with mobile applications and external anemometers. It is suitable for police operations, outdoor hunting, security inspection, geological exploration, engineering surveying, and search‑and‑rescue missions.

Ask more info@pautac.fi

SKU: FTM-BRF Category: Tags: , , , , ,

Features

  • Single point ranging: Measuring the straight line distance between target.
  • Two-point measurement: Measure the straight -line distance between target A and target B.
  • Target coordinates & location
  • Fall of shot (FOS)
  • Ballistic solution
  • Angle measurement. Height measurement .
  • Eye-safe laser rangefinder( measuring accuracy 1m).
  • GPS module.
  • Digital magnetic compass.
  • Battery live up to 5000 measurement
  • Waterproof, IP67
  • 2-Year Warranty

Specification

Category Specification
Magnification 10×
Objective Diameter 42 mm
Field of View 6°
Exit Pupil 4.2 mm
Low‑Light Coefficient 20.5
Diopter Adjustment −5 to +5 D
Interpupillary Distance 56–76 mm
Lens Coating Fully Multi‑Coated, ED Objective Lenses
Reticle Etched Mil Reticle, Adjustable Brightness
Laser Type 1535 nm, Class 1
Beam Divergence 0.6 mrad
Range 20–10,000 m
Ranging Accuracy ±1 m
Continuous Ranging 3 Hz
Detection Rate ≥98%
Ranging Modes First Target, Last Target, Distance Gating
Positioning System BD + GPS + GLONASS
Horizontal Accuracy 5 m CEP
Elevation Accuracy 10 m PE
Compass Range Azimuth 0–360°, Pitch ±90°
Compass Accuracy ±0.5°
Environmental Sensors Temperature, Humidity, Pressure
Display AMOLED
Dimensions 170 × 135 × 66 mm
Weight 1000 g (without battery)
Tripod Mount 1/4″
Battery Type 1× CR123A / 16340
Endurance >5000 measurements
Wired Interface UART (TTL 3.3 V) → USB
Wireless Interface Bluetooth 5.3
IP Rating IP67
