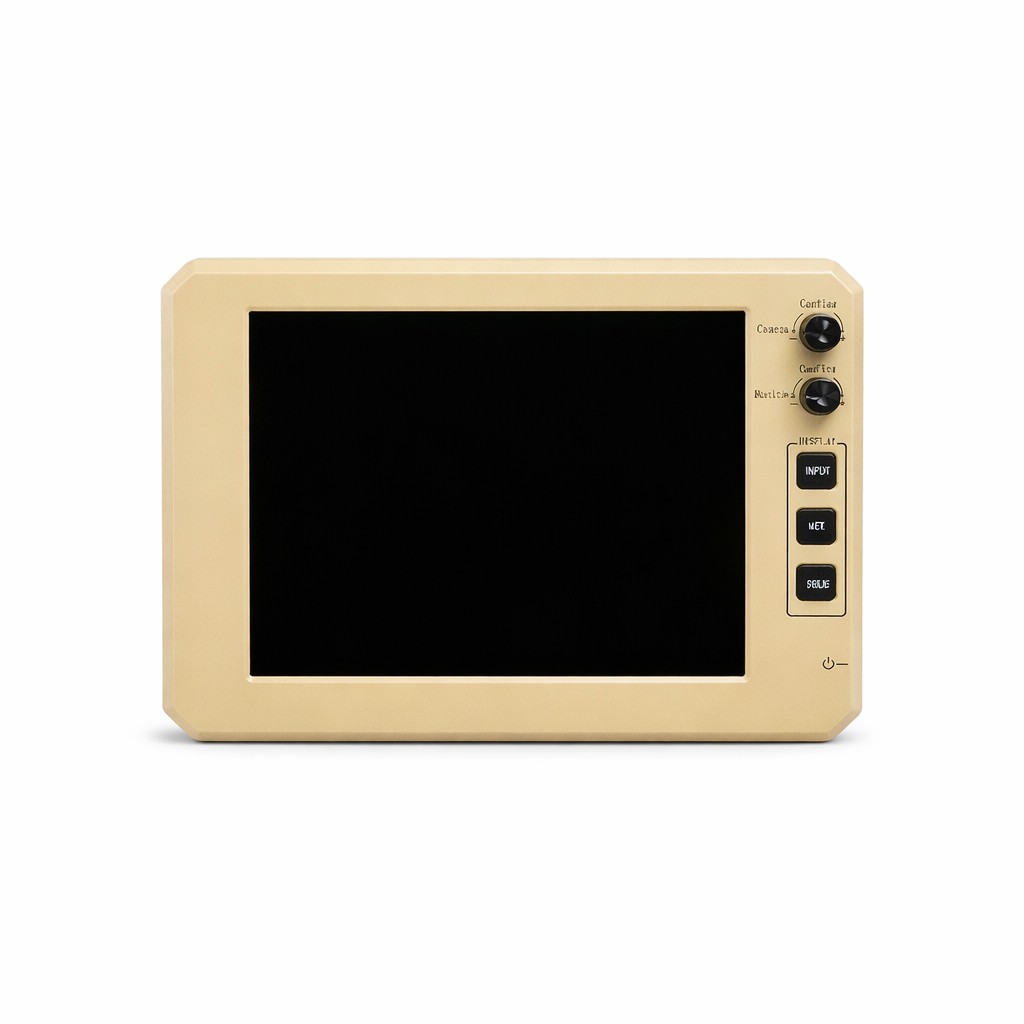

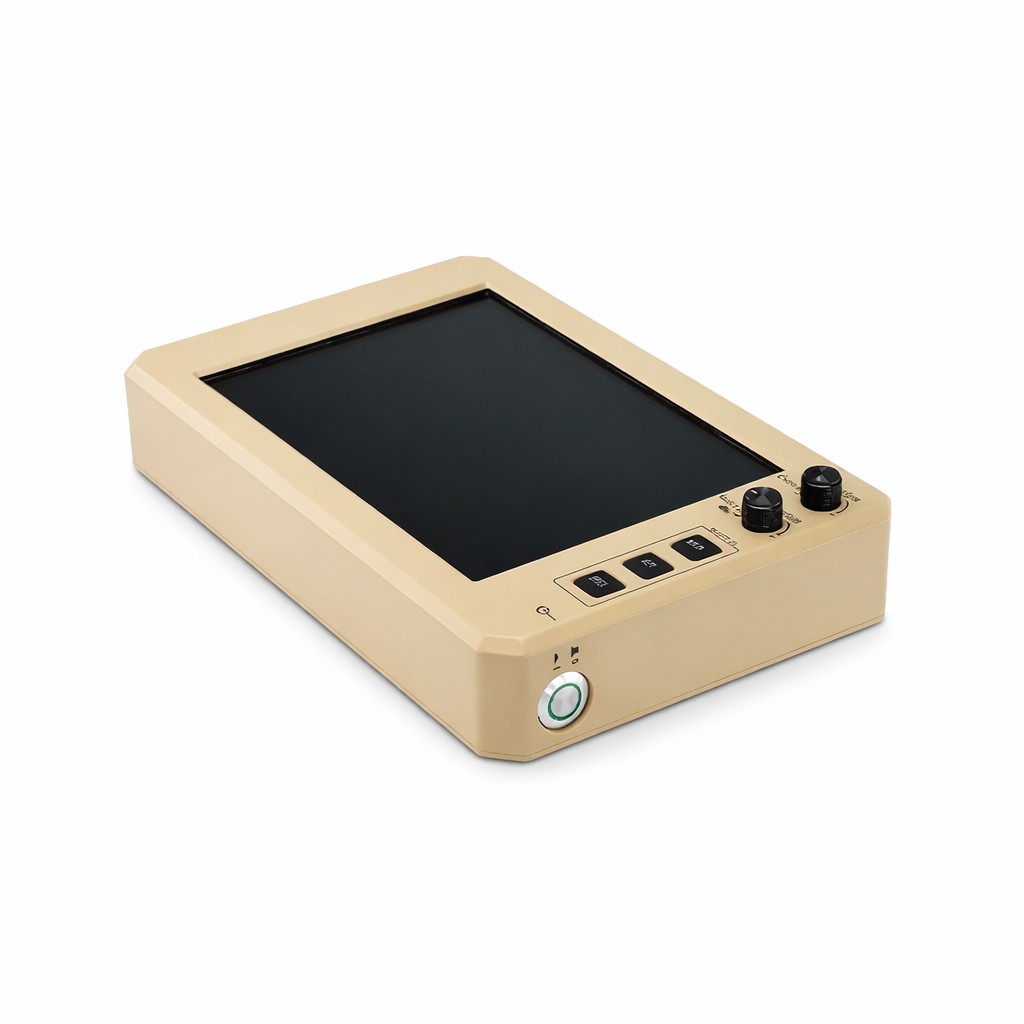

Product Overview
The Display Control Terminal is a monitor specifically designed for mounted thermal cameras. It is available in an 8-inch version that supports both PAL and SDI video formats, as well as 10-inch and 12-inch versions that support SDI only. It has the functions of taking photos and recording videos and also supports the input and simultaneous display of two channels of video signals. With its functionality and reliability, the Display Control Terminal has become an excellent accessory for mounted thermal cameras.
Specification
| Parameter | TZD080 | BD10I2 | BD12I4 |
|---|---|---|---|
| Size | 8″ | 10″ | 12.1″ |
| Type | TFT‑LCD | TFT‑LCD | TFT‑LCD |
| Resolution | 800×600 (PAL) 1280×720 (SDI) |
1280×800 (SDI) | 1280×800 (SDI) |
| Video Interfaces | 2 | 2 | 4 |
| Power Supply | 18–32 V | 18–32 V | 18–32 V |
| Ingress Protection | IP54 | IP54 | IP54 |
| Shock | 40 g | 40 g | 40 g |
| Weight | ≤3 kg | ≤4 kg | ≤4.5 kg |
| Power Consumption | ≤20 W | ≤20 W | ≤20 W |
