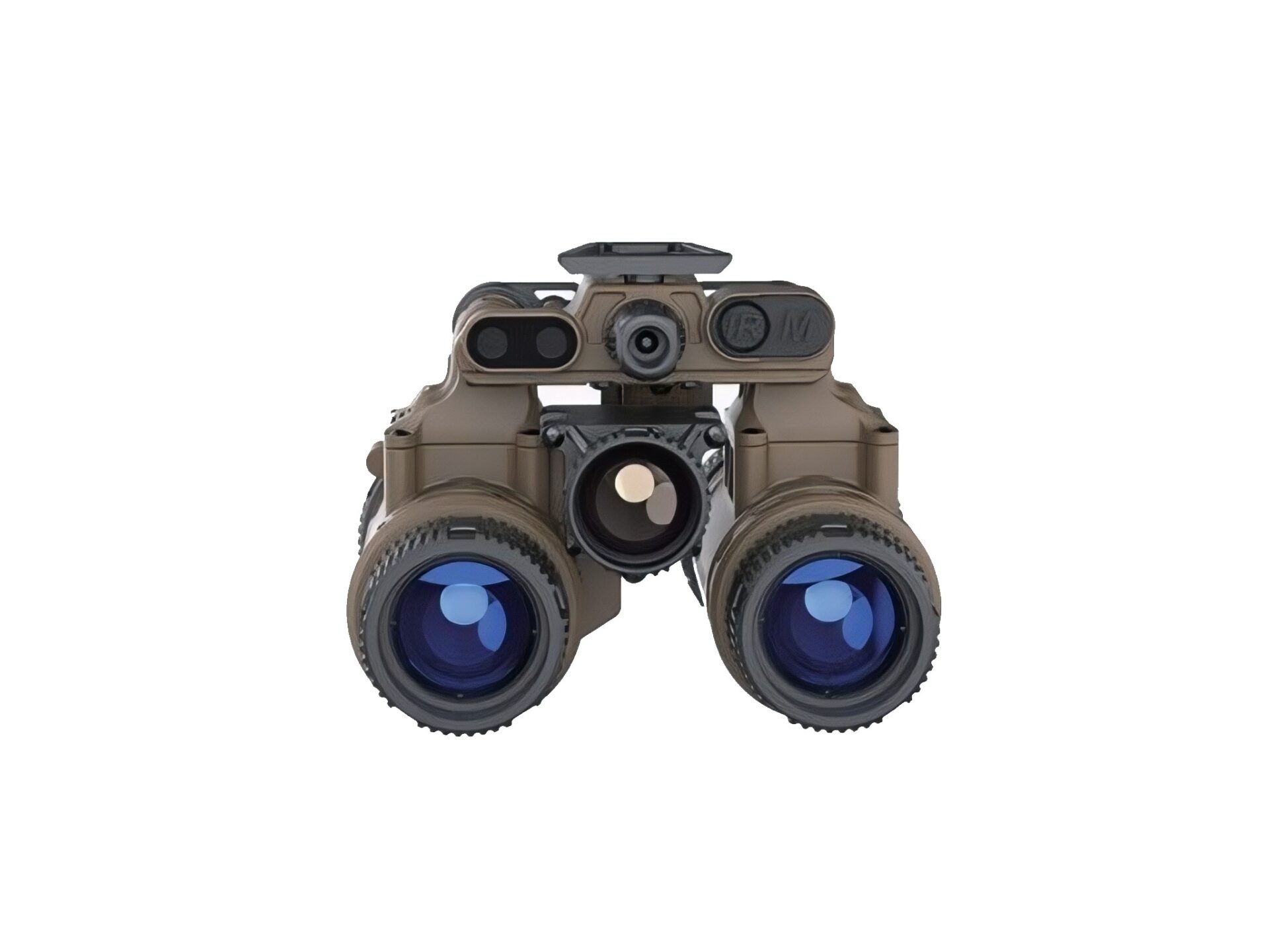

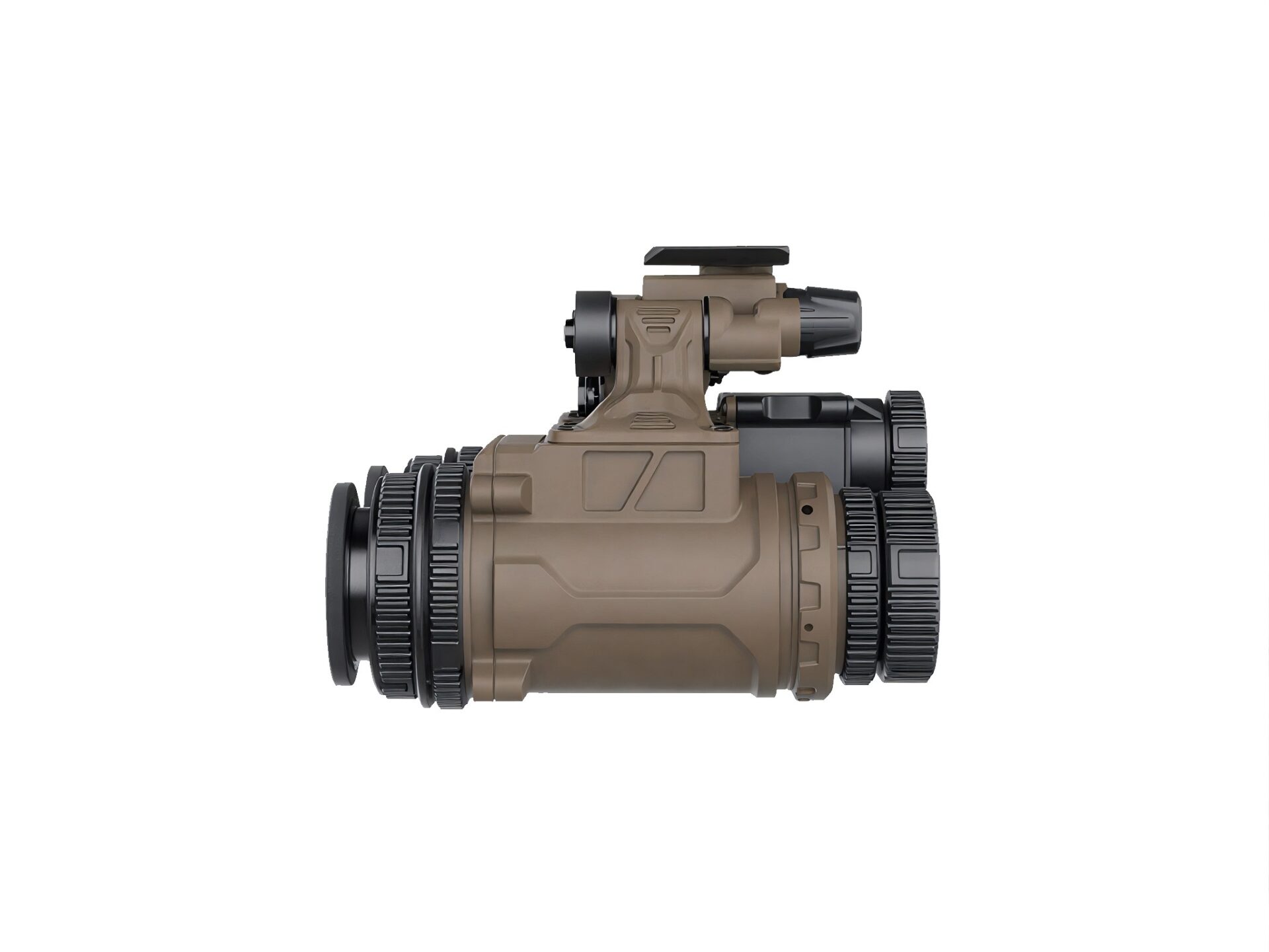

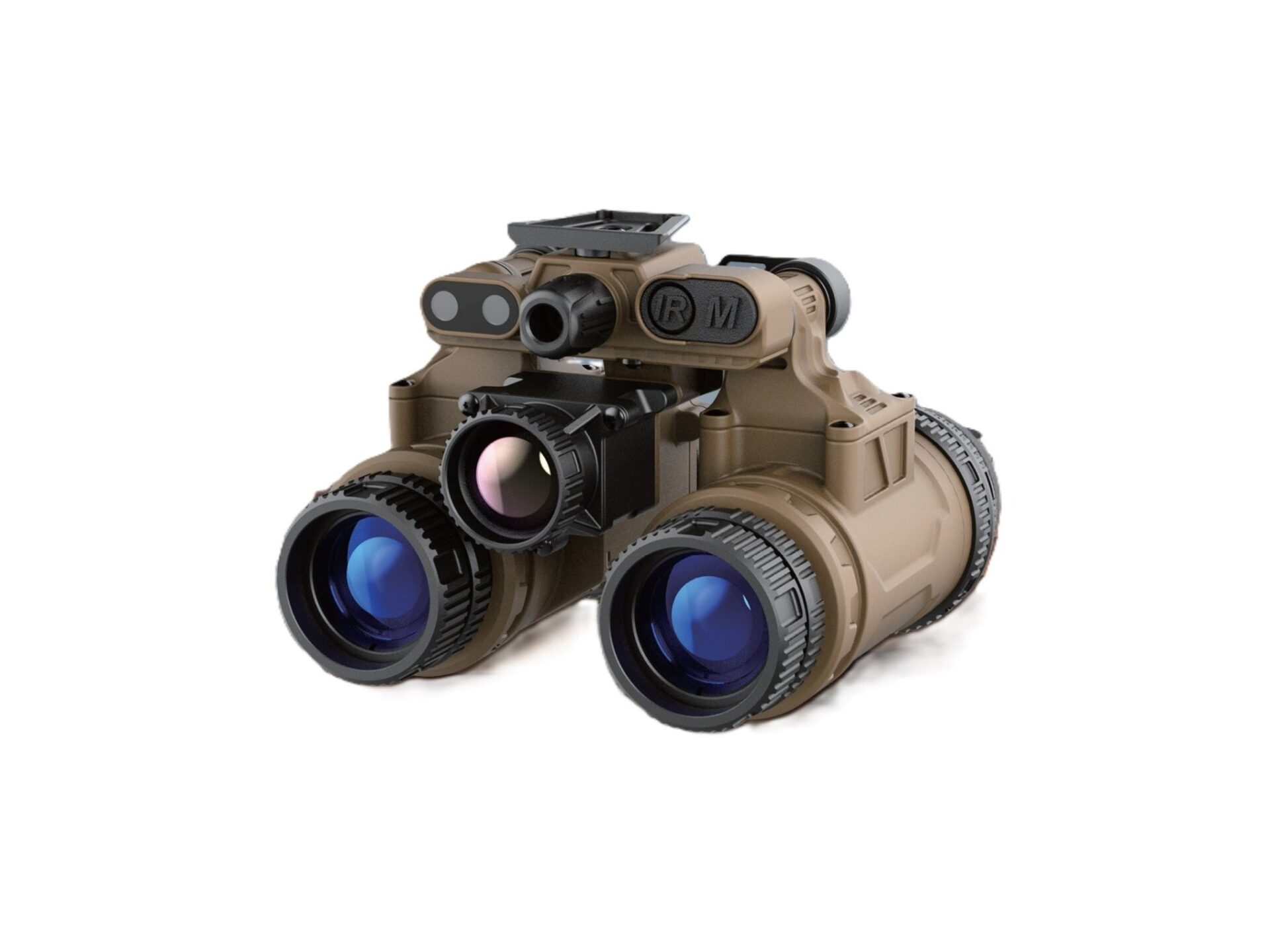

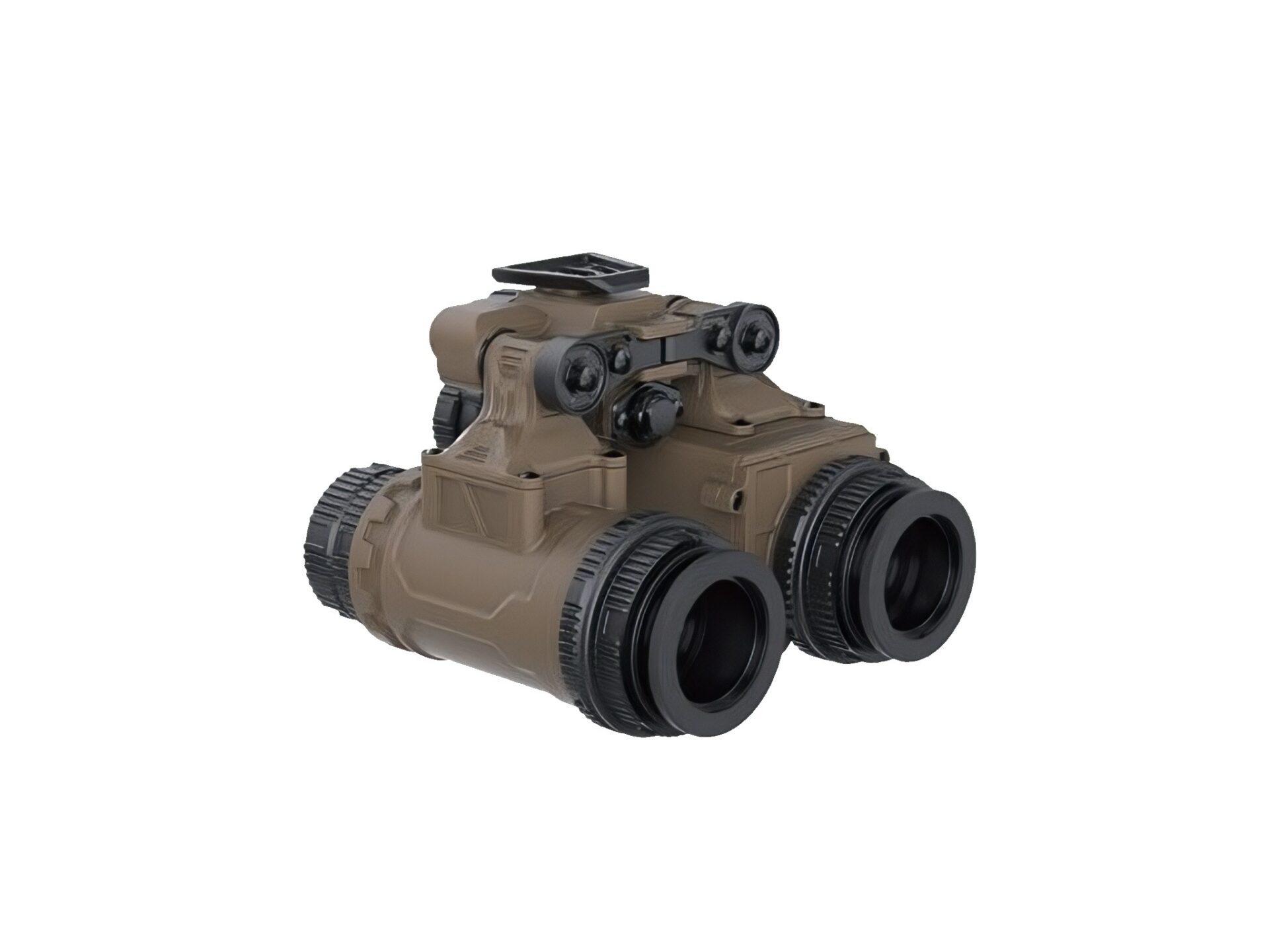

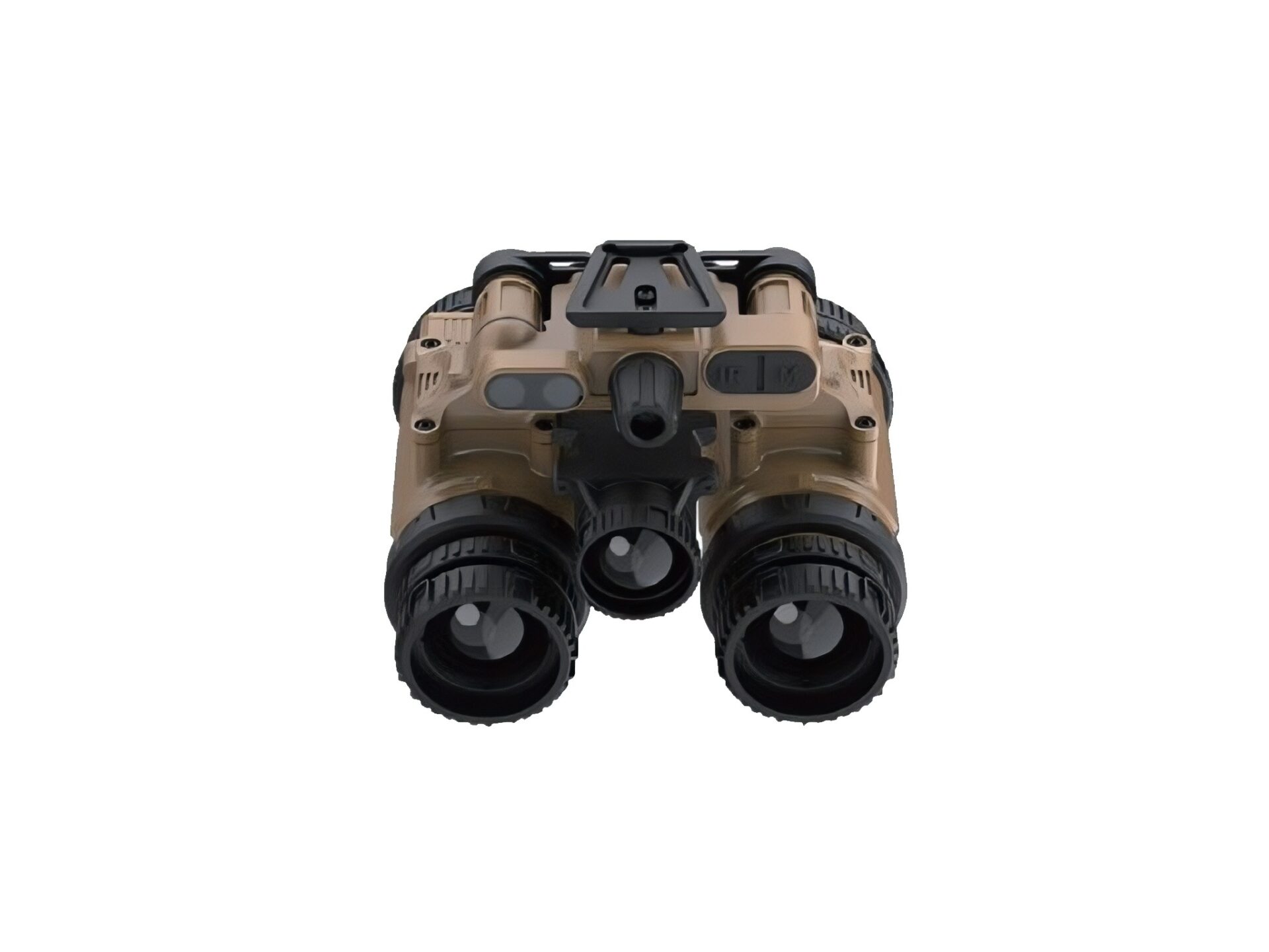

Advanced Dual‑Band Night Vision System
Engineered for demanding environments, this next‑generation dual‑band night vision platform delivers a major leap in clarity, responsiveness, and operational comfort. Its upgraded fusion imaging architecture enhances rapid perception, combining low‑distortion night vision with significantly reduced chromatic aberration. A newly optimized infrared pipeline cuts latency by 33% compared with the previous generation, ensuring smoother tracking and faster target acquisition. The system’s proprietary fusion algorithm further sharpens recognition accuracy, even in complex lighting conditions.
Miniaturized, Lightweight, and Built for Long Missions
A redesigned optical‑mechanical structure reduces overall size and brings the weight down to just 550 g. The result is a compact, balanced device that minimizes fatigue during extended wear while maintaining full ruggedness and stability.
Comprehensive Protection and Smart Power Control
Integrated safeguards—including high‑light protection, flip‑up power‑off, and side‑turn power‑off—ensure reliable operation and extended component lifespan. These intuitive mechanisms streamline handling and reduce the risk of accidental exposure or unnecessary power consumption.
Features:
- Dual-spectrum image fusion and object highlight
- Detail enhancement and target recognition
- 12 µm, 640×512 high-sensitivity thermal detector
- Azimuth and Pitch/Inclination Indication
- Built-in compass with calibration
- Brightness and contrast image adjustment
- Low power consumption.
- Up to 8 hours continuous running in fusion mode
- More then 80 hours operation in night vision mode
- Waterproof
- Built in HUD
- Operation based on use of the battery pack
- 2 Years Warranty
Specifications:
Optics
Magnification, x: 1
Exit Pupil Distance, mm: 25
Adjustment, D: -4 to +2
Interpupillary Distance Adjustment Range: 55-72mm
I²
FOV, °: 40
Lens System, mm: F/1.2，25
Range Of Focus: 25cm to infinity
Gain Adjustment: Yes (optional)
Bright Source Protection: Yes
Infrared lluminator: Built-in
Thermal Image
Type: VOx Uncooled
Resolution, pixels: 640×512
Pixel Pitch, μm: 12
NETD, mK: <30
Frame Rate, Hz: 50
FOV, °: 24 x 20
Brightness Control: Yes
Other
Enhanced Mode: Outline, Hightline
Sensor Azimuth Indication: Yes
GPS Location: Yes
Display Type: OLED
Resolution, pixels: 1280×1024
Range Performance Detection Range, m: 1500m
Degree of Protection: P67
Operating Temperature Range, °C: -40 to +50
Battery Type: 18650*2
Operating Time on Battery Pack: (att=25°C), h: Fusion Display ≥ 8 hours, I² up to 80 hours
Automatic Power-off: Individual pod shut off
Dimensions, mm: 105 x 110 x 87
Weight & Size Main Body: 530g, Battery Holder ≤100g (without battery)
