Description:

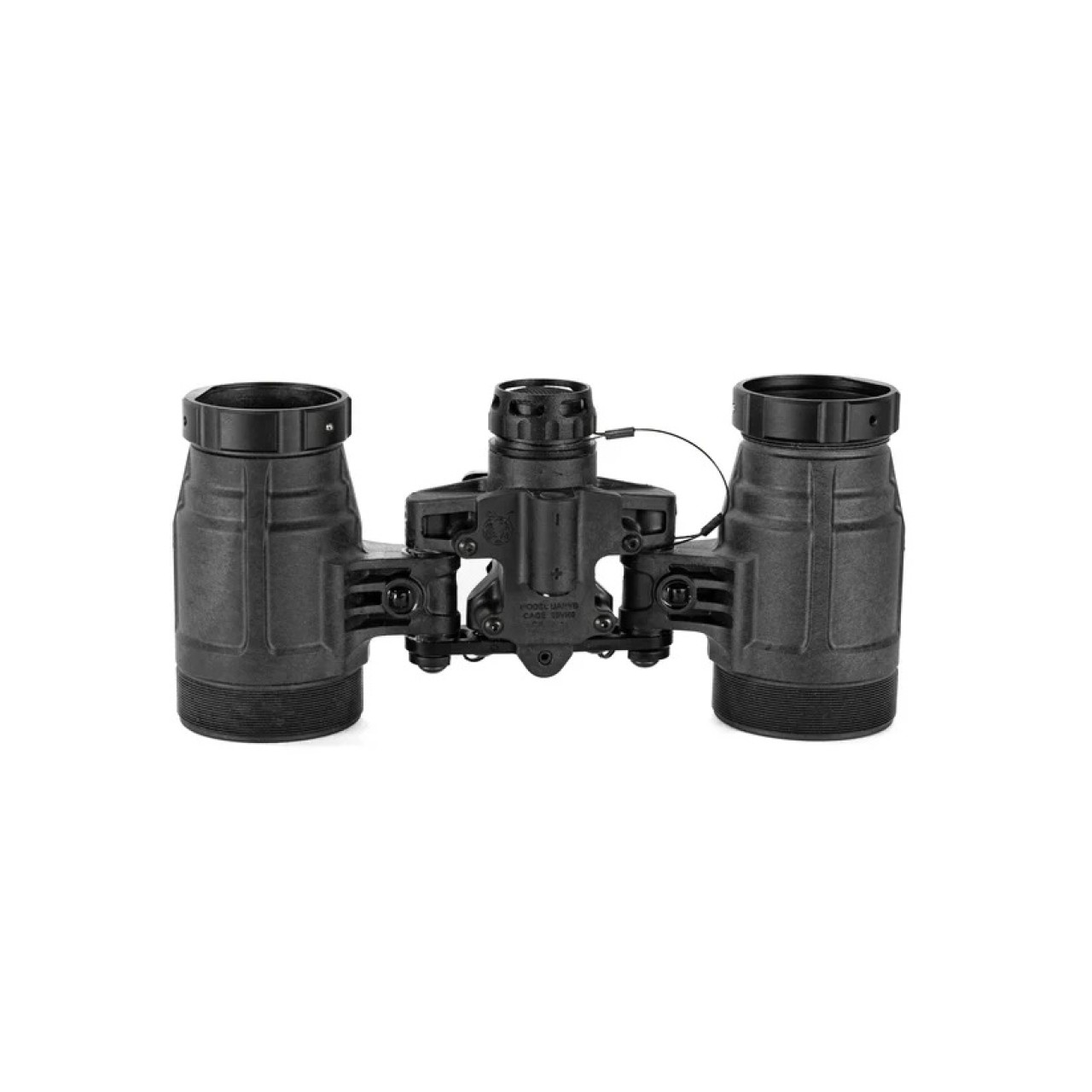

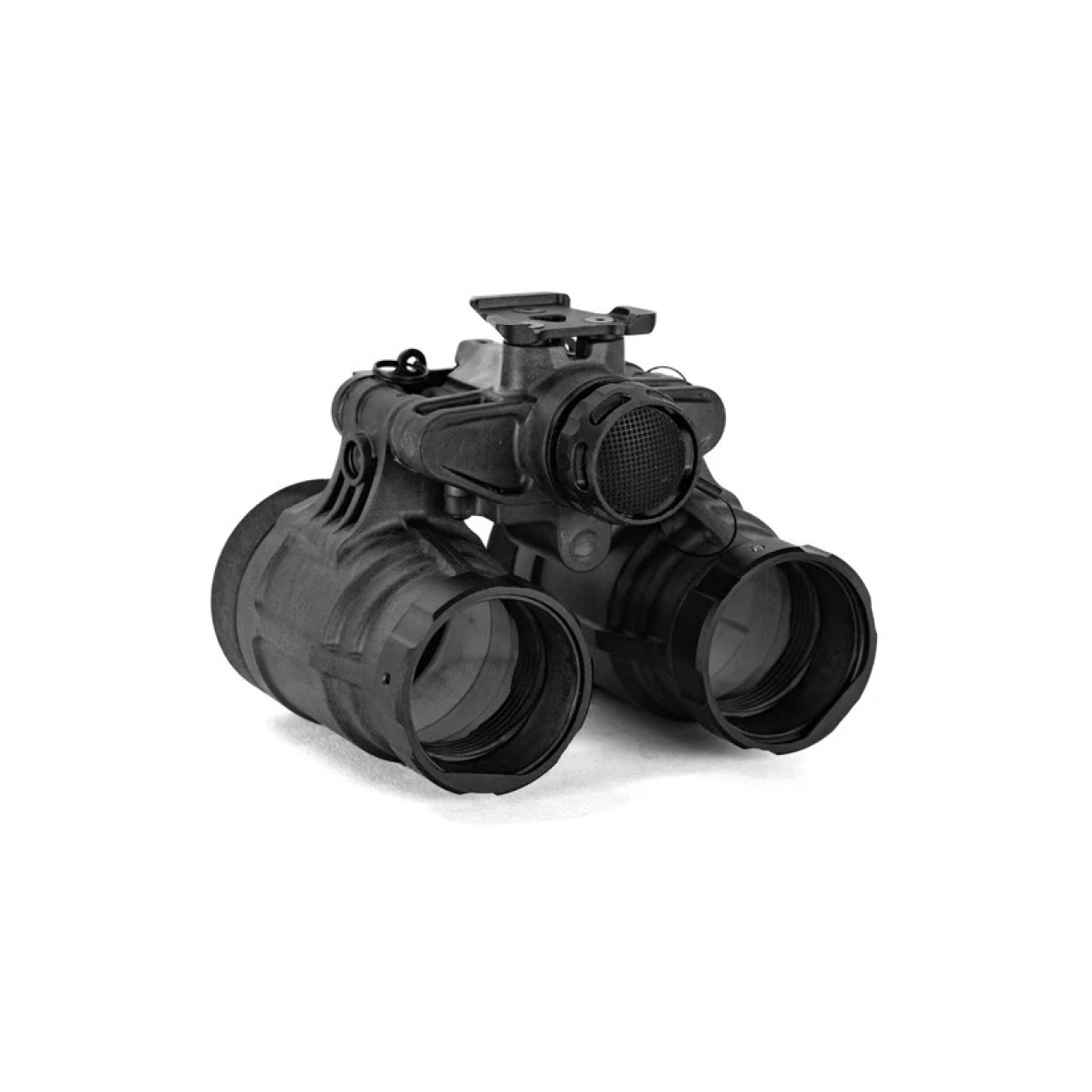

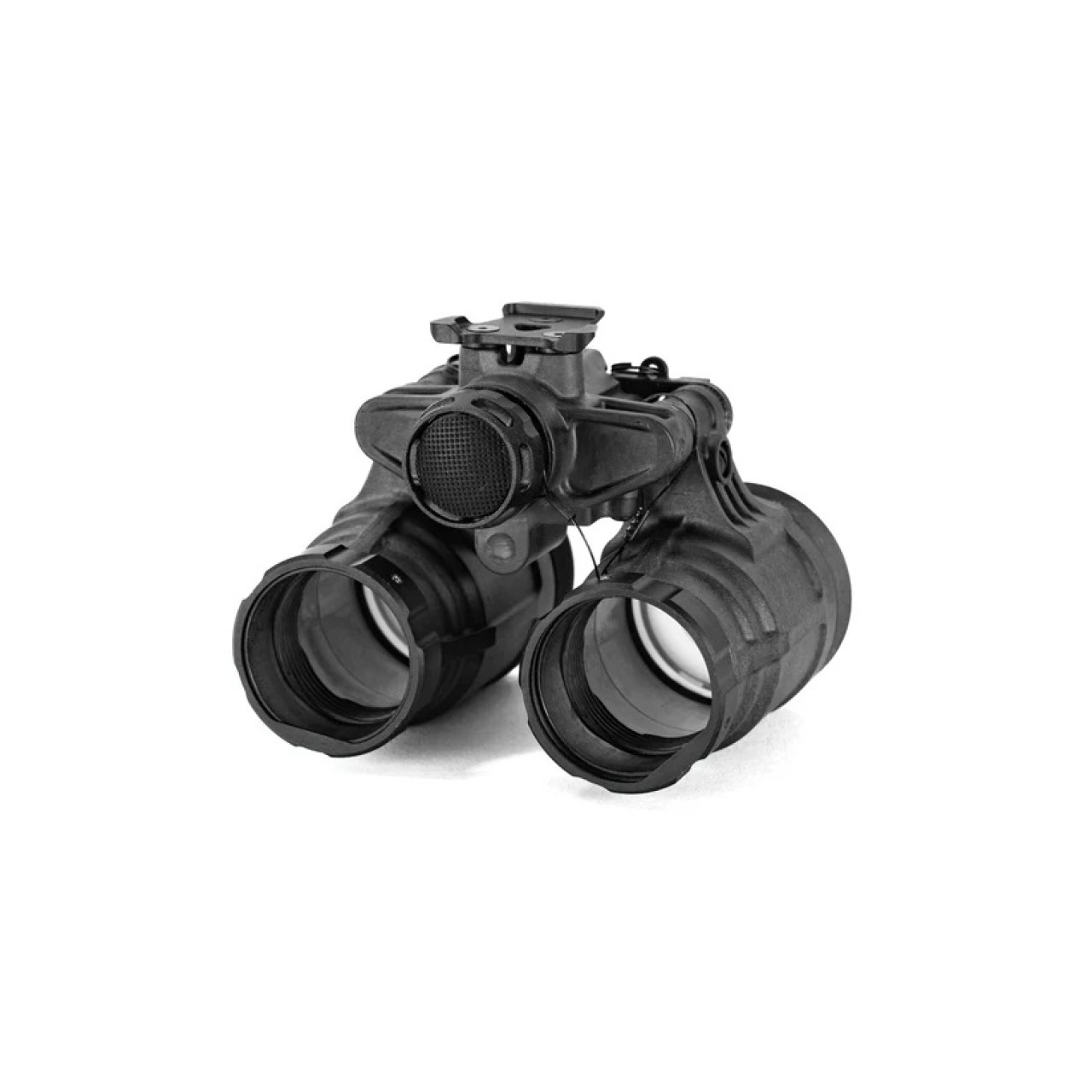

The Ultralight Articulating Night Vision Binocular (UANVB “Katana”) remains the lightest binocular on the market, with on board power, weighing in less than 541 grams fully built. The articulating design allows for individual pod shut off, enabling the user to use one or both eyes while utilizing weapon mounted, non-passive aiming systems. End users will be able to mount and dismount vehicles easier with the low profile of the UANVB when stowed.
The UANVB features the original Friction Lock Interpupillary Adjustment feature so you can set it and forget it with no additional tools. This unit may be lightweight but does not compromise strength as it exceeds MIL-STD-810G and had been drop tested beyond NATO or TOP standards (6 feet to concrete in 6 different orientations on a single device).
This unit is light weight without compromising strength. It is rugged and exceeds IP-68, and MIL-STD-810H plus has been drop tested to the NATO 1.5 meter firearms drop test standard. Each unit housing waterproof is tested and unit is collimated before it is delivered to customer.
UANVB “Katana” is designed and hand built in New Hampshire, USA.
Technical specifications:
- Housing: High strength hybrid fiber reinforced injection molded polymer
- Colour: Mil-standard Type III class II hard anodize, H-Series Cerakote
- Weight: 541g with standard optics and a battery
- Power Supply: CR123 onboard
- Out-Board Power: Yes, LEMO port
- Runtime: 25+ hours
- Objective lens: Mil-Spec Lightweight Objective, EFL 27mm, F/1.2
- Focus Range: 25cm to infinity
- Field of View: 40º
- Diopter: Adjustable +2 to -6
- Environmental protection: Exceeds IP-68, and MIL-STD-810H
- Low Battery Indicator
- Automatic gain
This is a Housing Kit, not a complete system. We highly recommend professional installation by a night vision technician. Improper assembly may damage the system and Paukatti Oy is not liable for damages.
