Description:

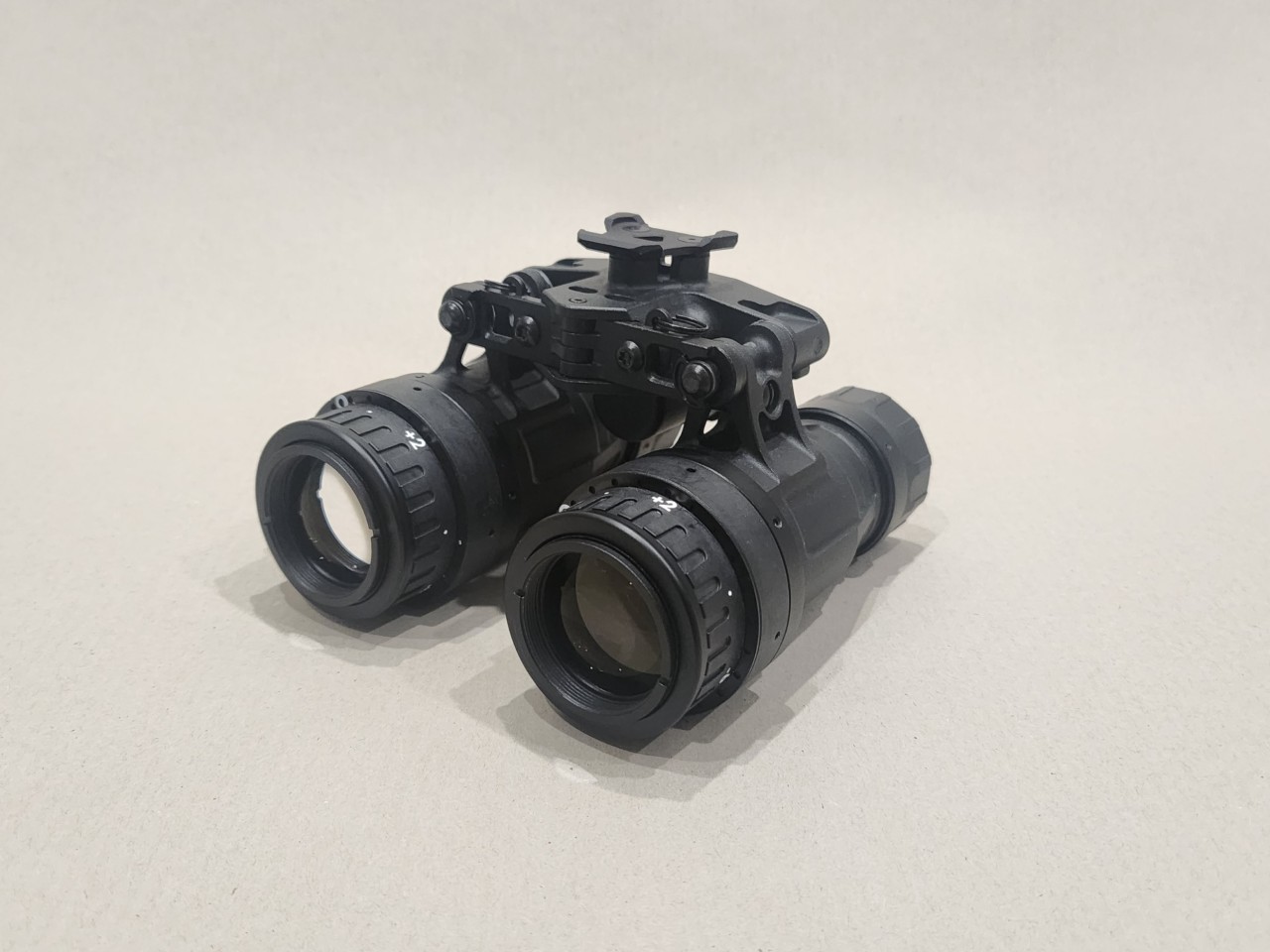

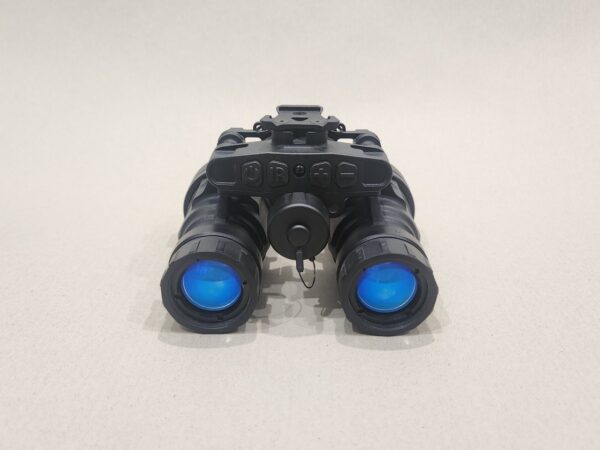

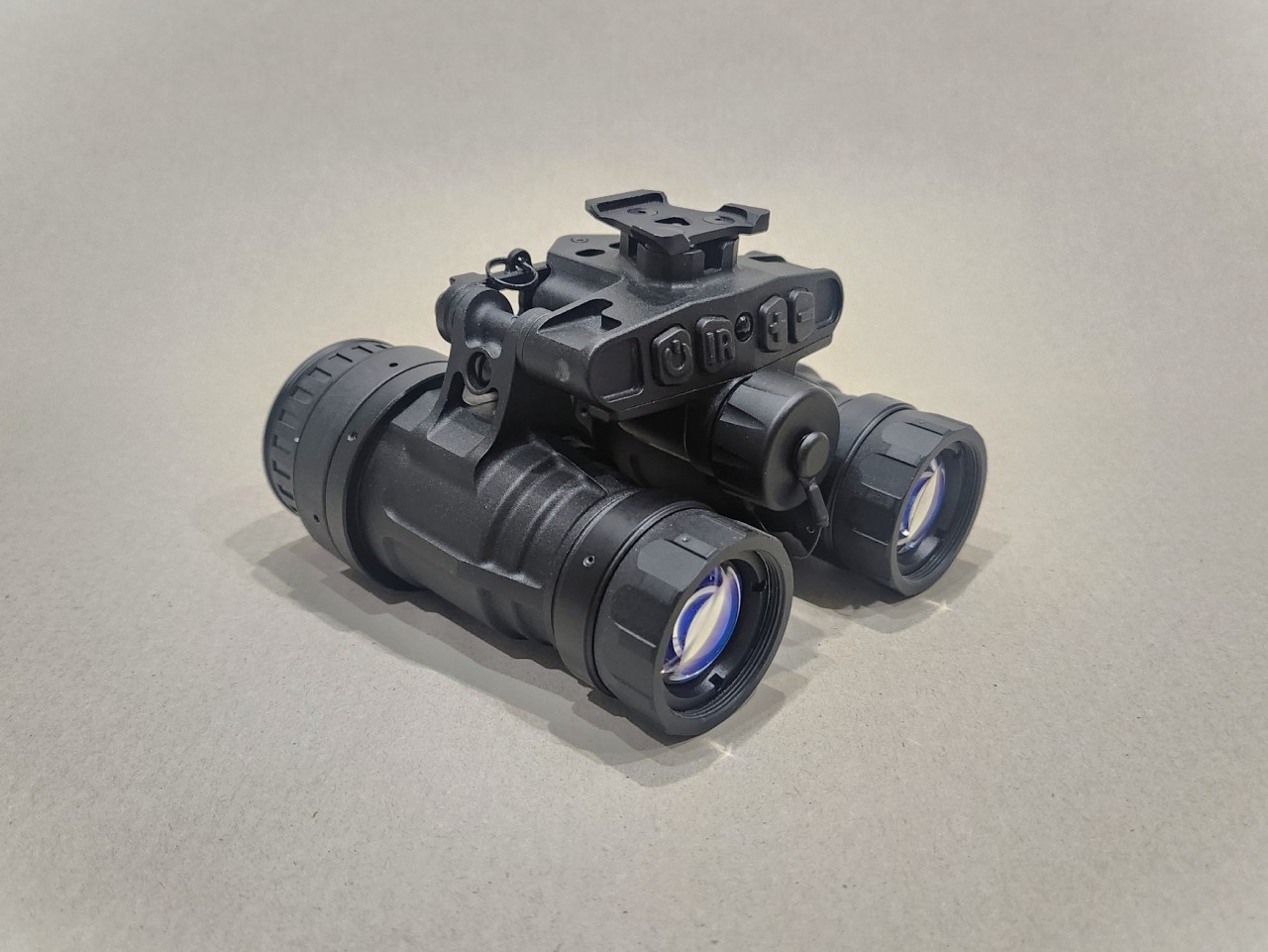

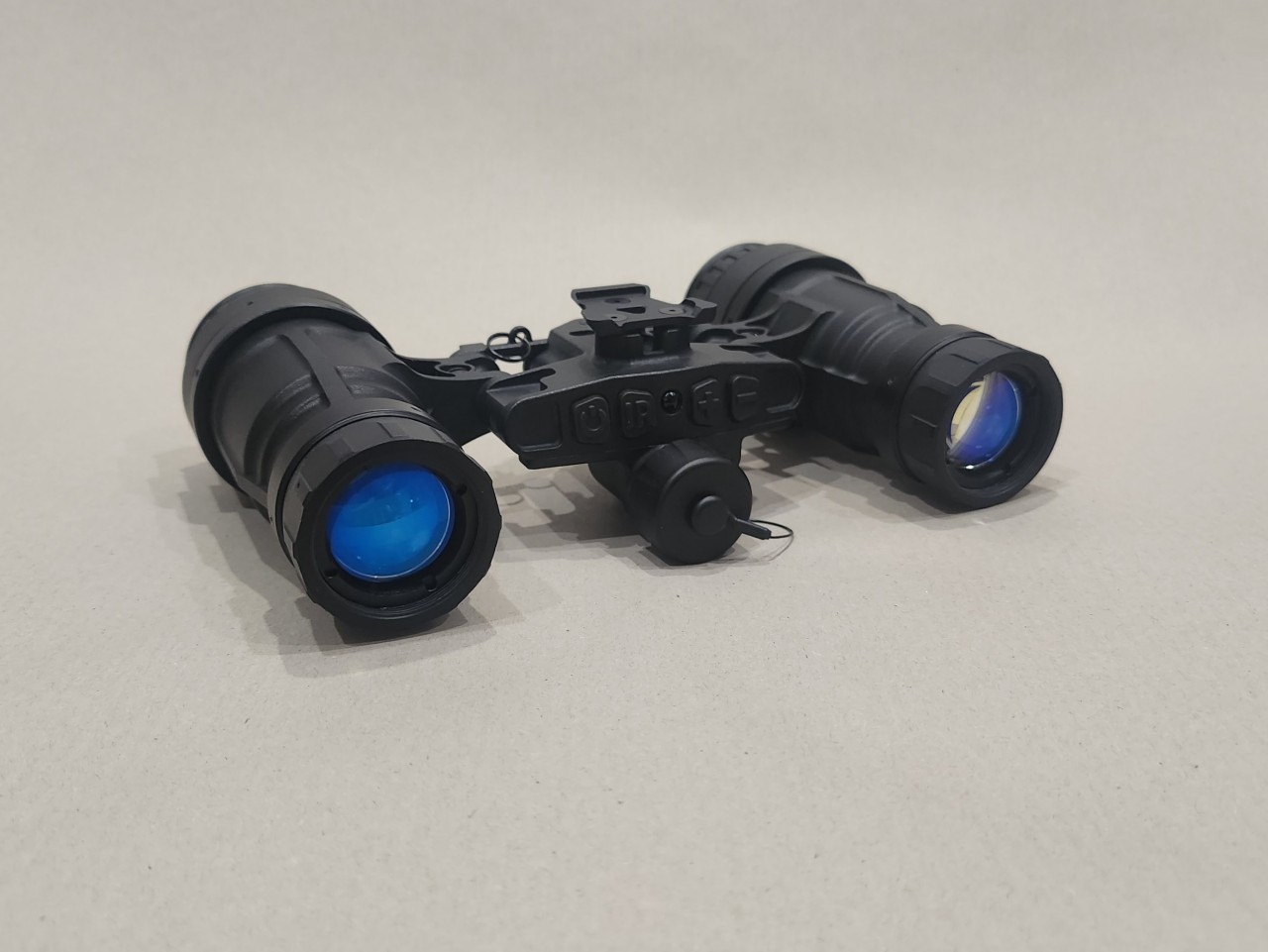

The Ultralight Articulating Night Vision Binocular – Full Control Ruggedized (UANVB-FCR) “Manticore-Ruggedized” is a articulating binocular housing made of high strength aerospace grade 7075-T6 aluminum with a full suite of onboard digital controls.
Using advanced multi-axis CNC machining an ultra lightweight and robust design is achieved, including an optimal single piece pod geometry.
This binocular includes features such as digital manual gain control, individual pod stow shutoff, IPD stops, user adjustable pod tension, IR-illuminator & indicator, and low battery indicator.
The device is powered on-board by a single CR123A for a continuous runtime of ~25 hours or with an optonal external power port for extended use.
Each unit housing waterproof is tested and unit is collimated before it is delivered to customer.
UANVB-OCR “Manticore-Ruggedized” is designed and hand built in New Hampshire, USA.
Technical specifications:
- Housing: CNC machined 7075-T6 & 6061-T6 aerospace grade aluminum, aerospace Grade 4 Titanium
- Weight: 561g with standard optics and a battery
- Power Supply: CR123 onboard
- Runtime: 25+ hours
- Objective lens: Mil-Spec Lightweight Objective, EFL 27mm, F/1.2
- Focus Range: 25cm to infinity
- Field of View: 40º
- Diopter: Adjustable +2 to -6
- Environmental protection: MIL-STD-810H
- IR Illuminator
- LEMO port
- Manual gain (automatic gain option)
Warranty:
Paukatti Oy’s night vision devices (excluding manufacturer built systems which are subject to their manufacturer warranty) are guaranteed to be free from manufacturing defects in both material and workmanship under normal use for a period of three (3) years for night vision device housing and two (2) years for NNVT image intensifier tubes and and one (1) years for Photonis image intensifier tubes from the date of purchase.
