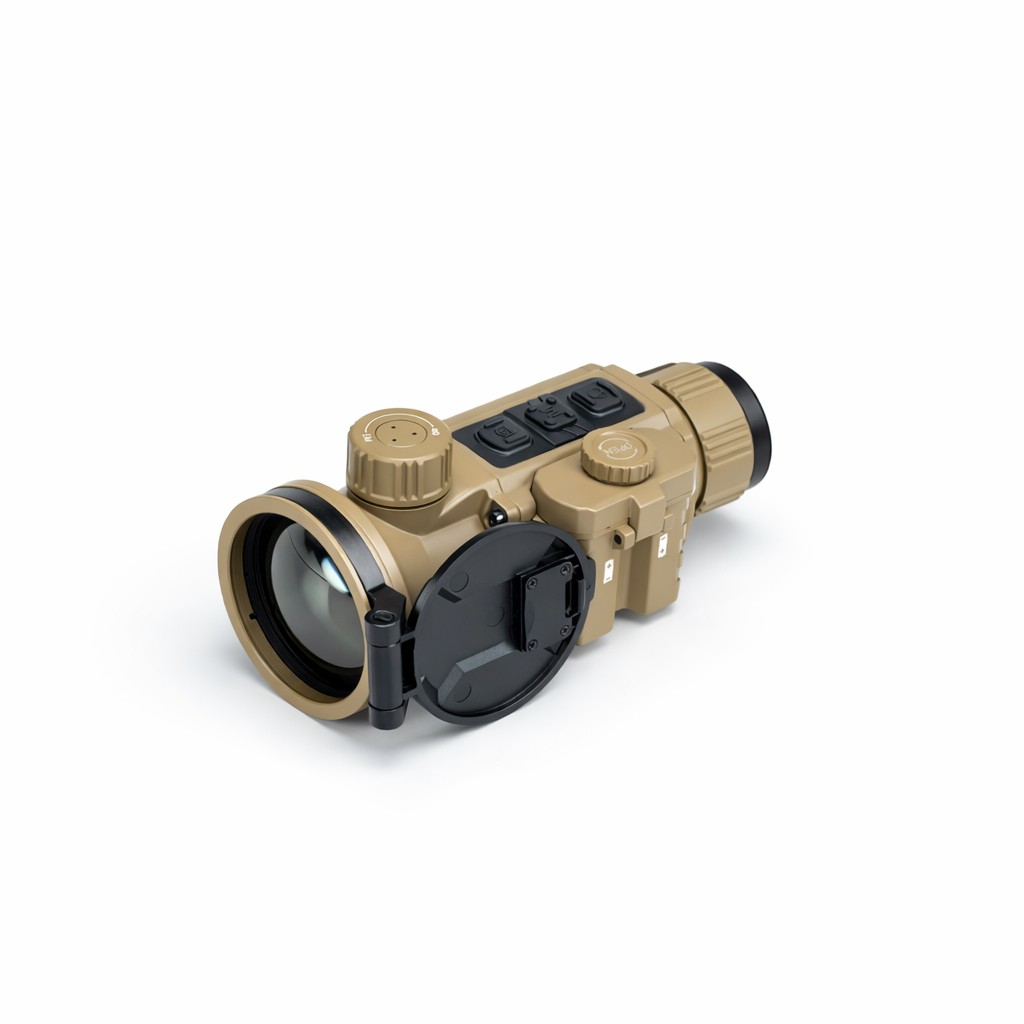

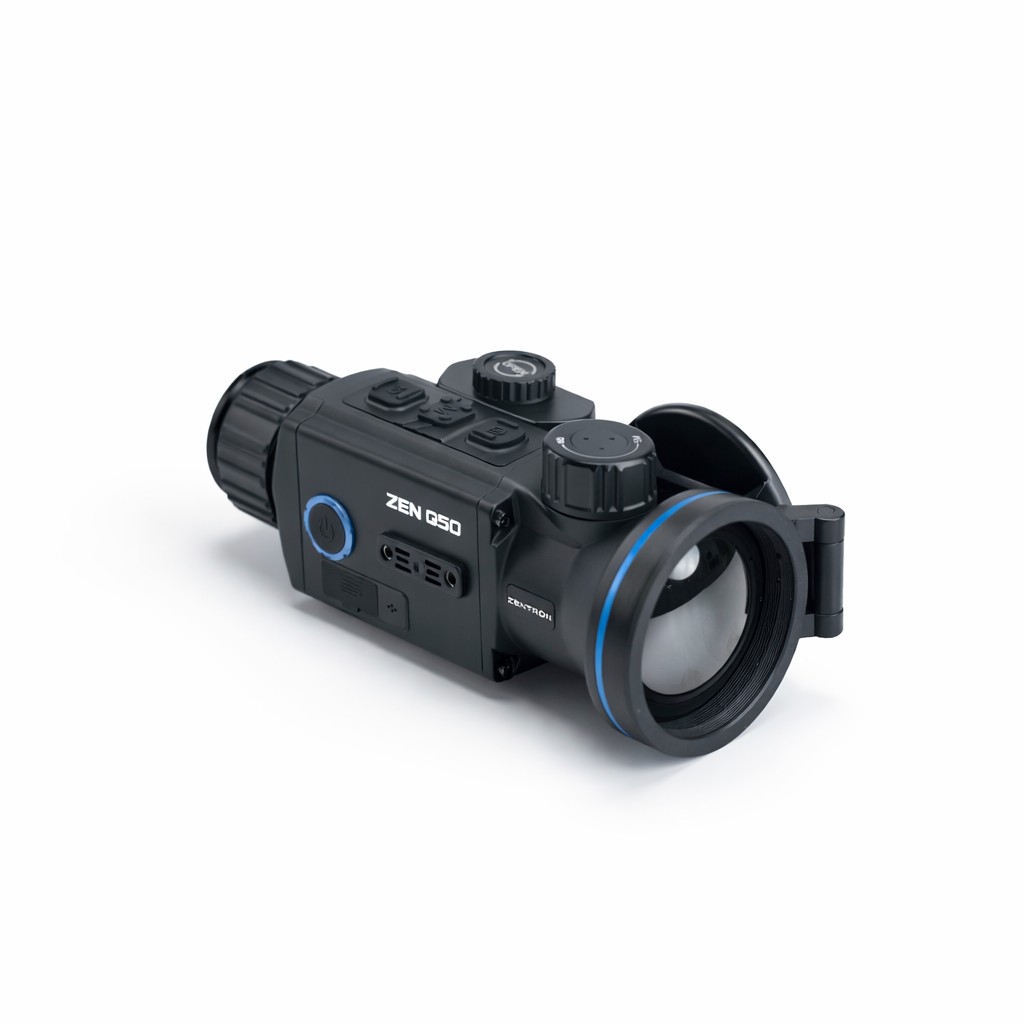

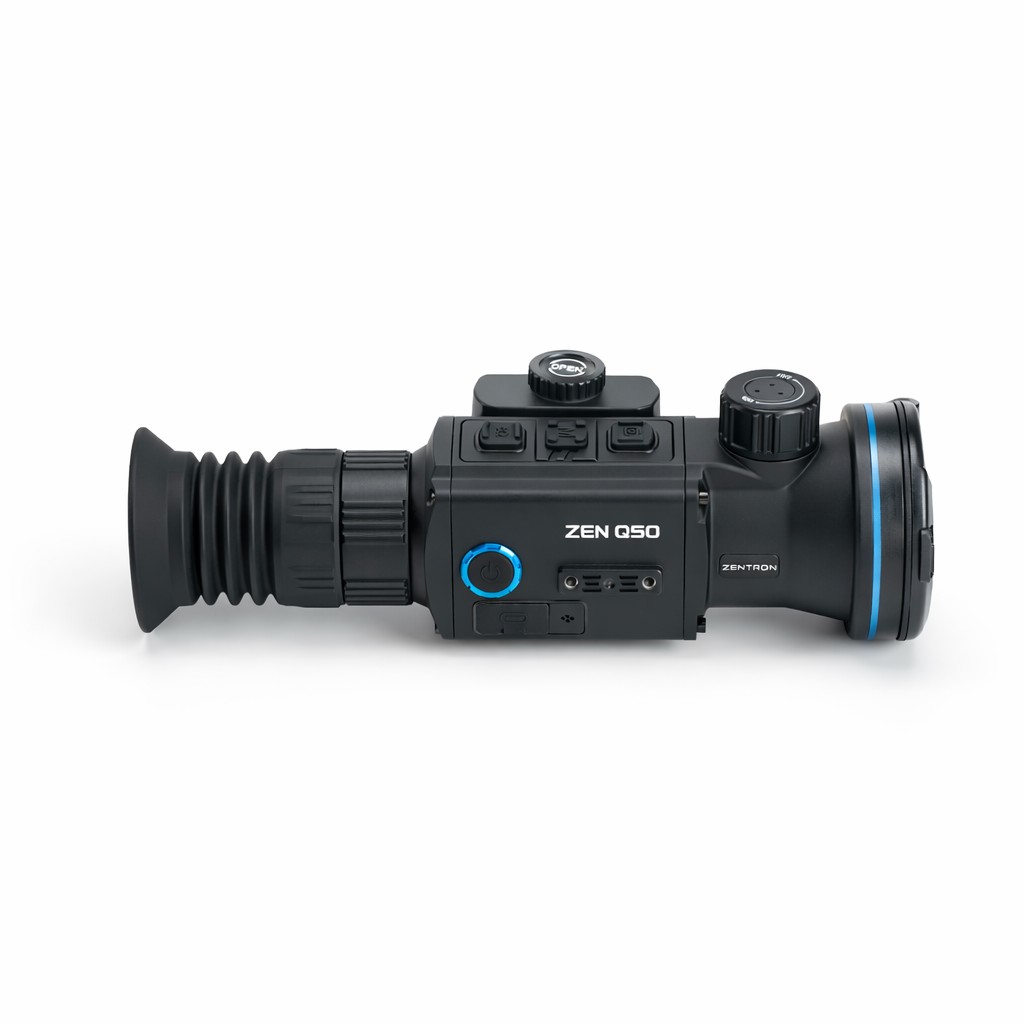

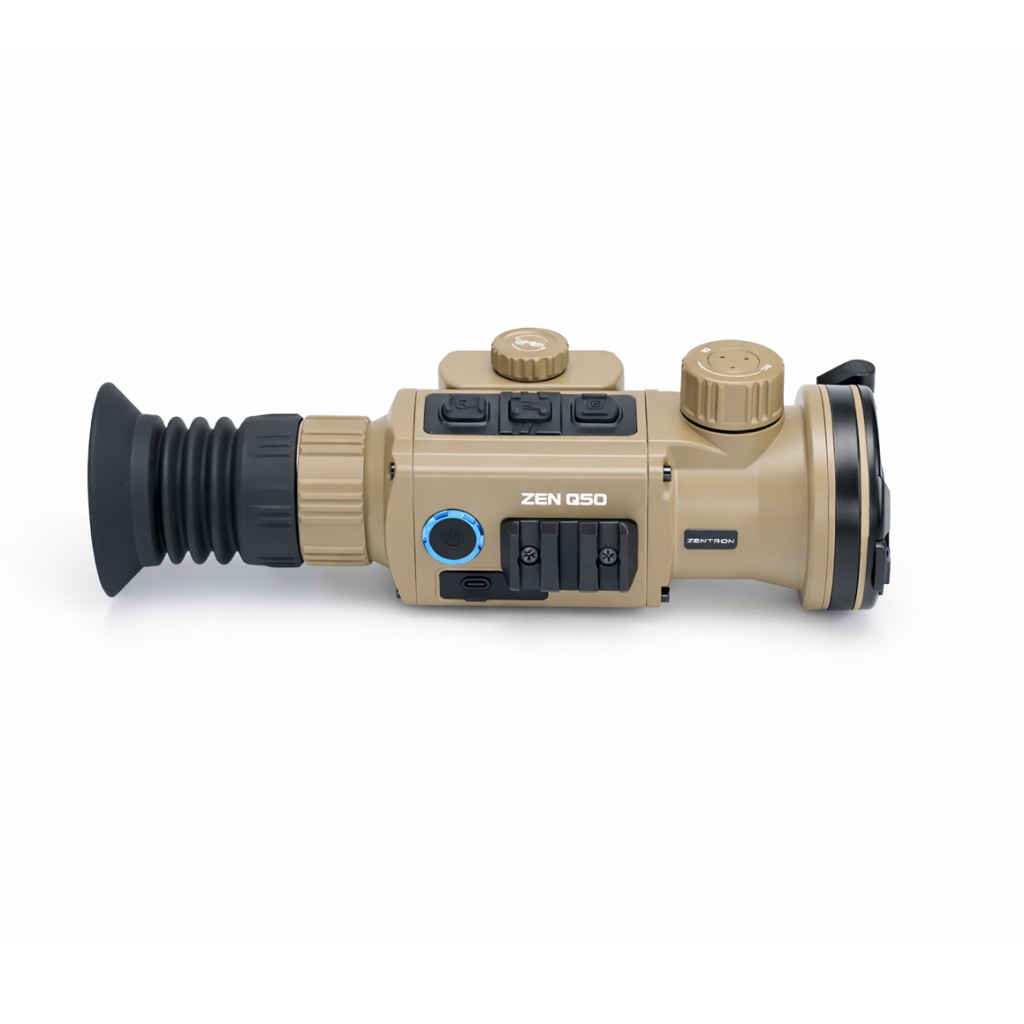

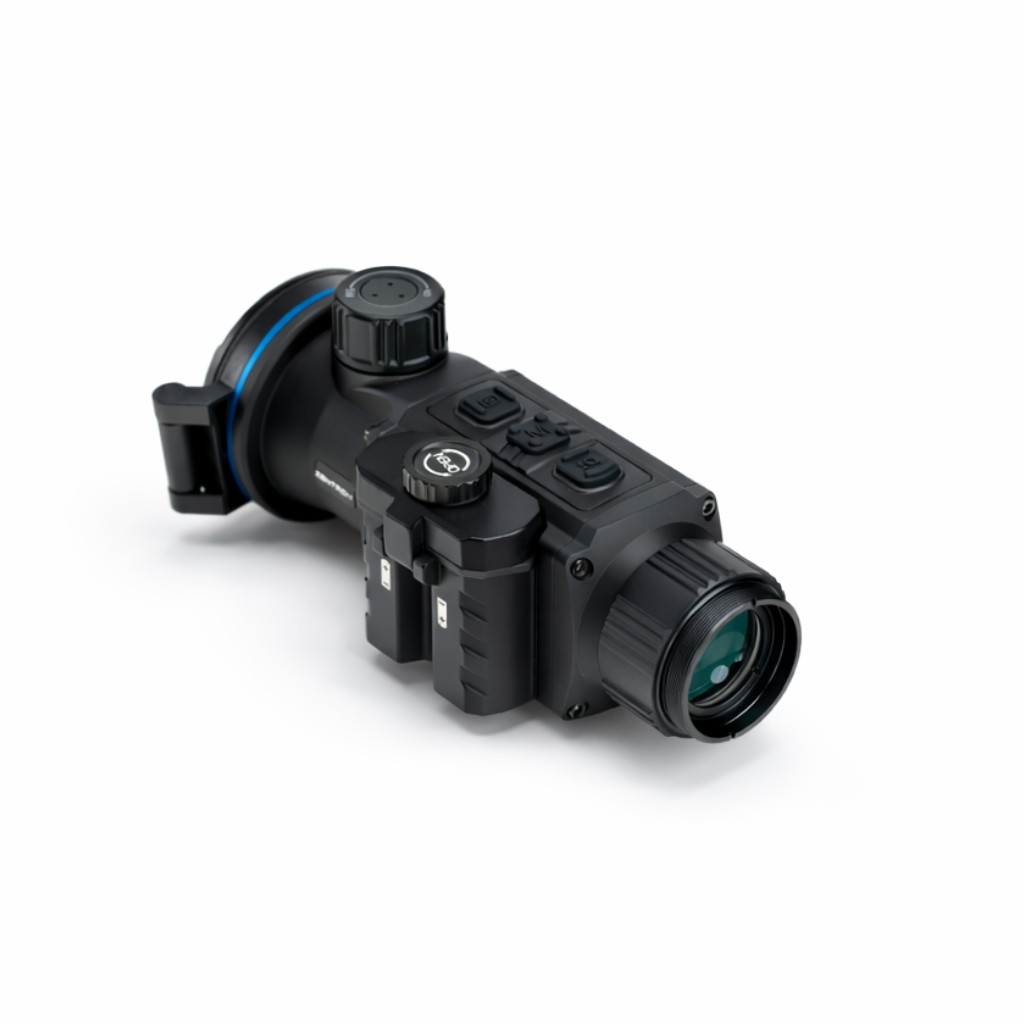

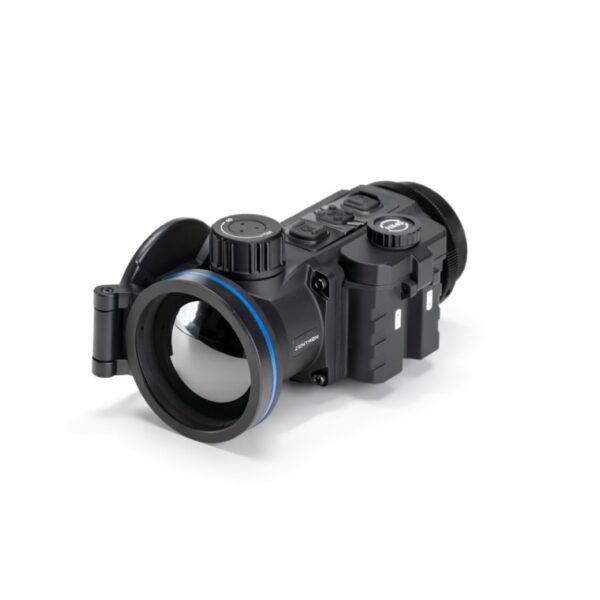

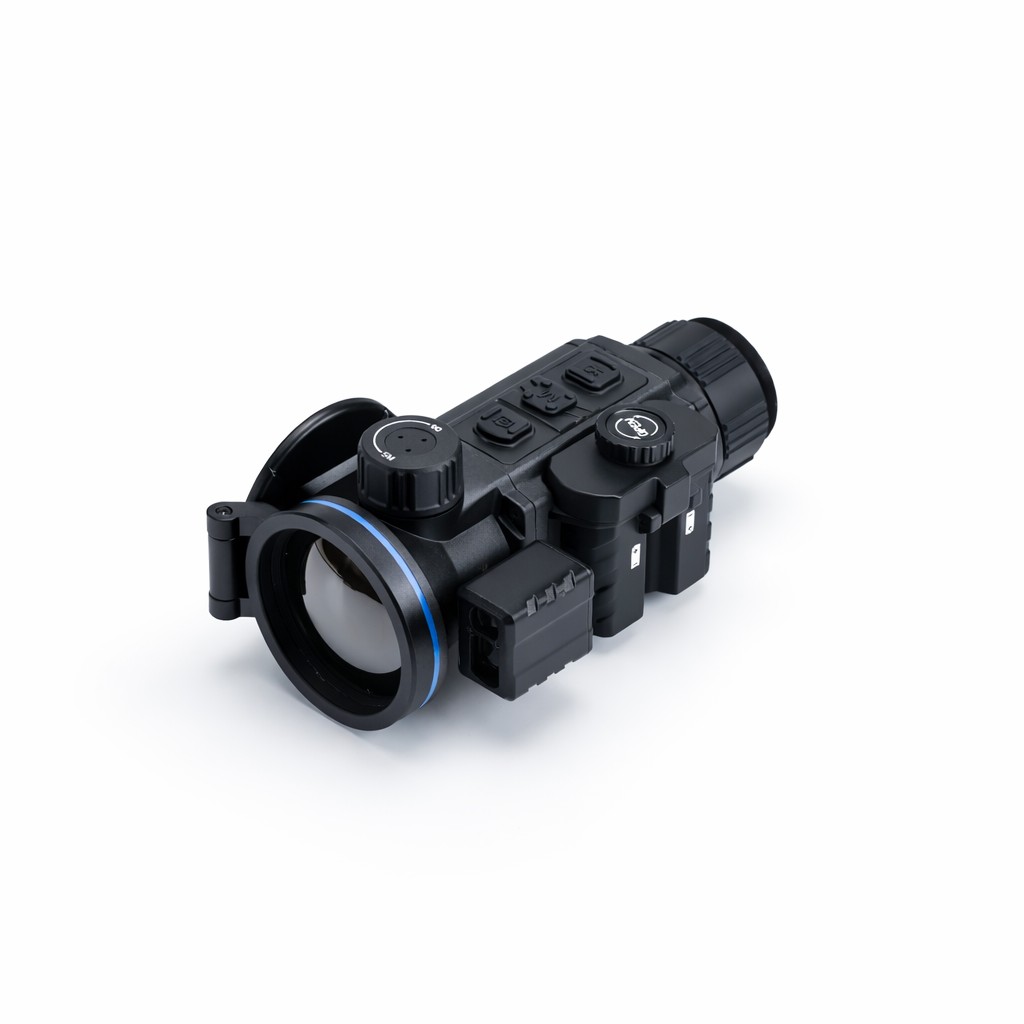

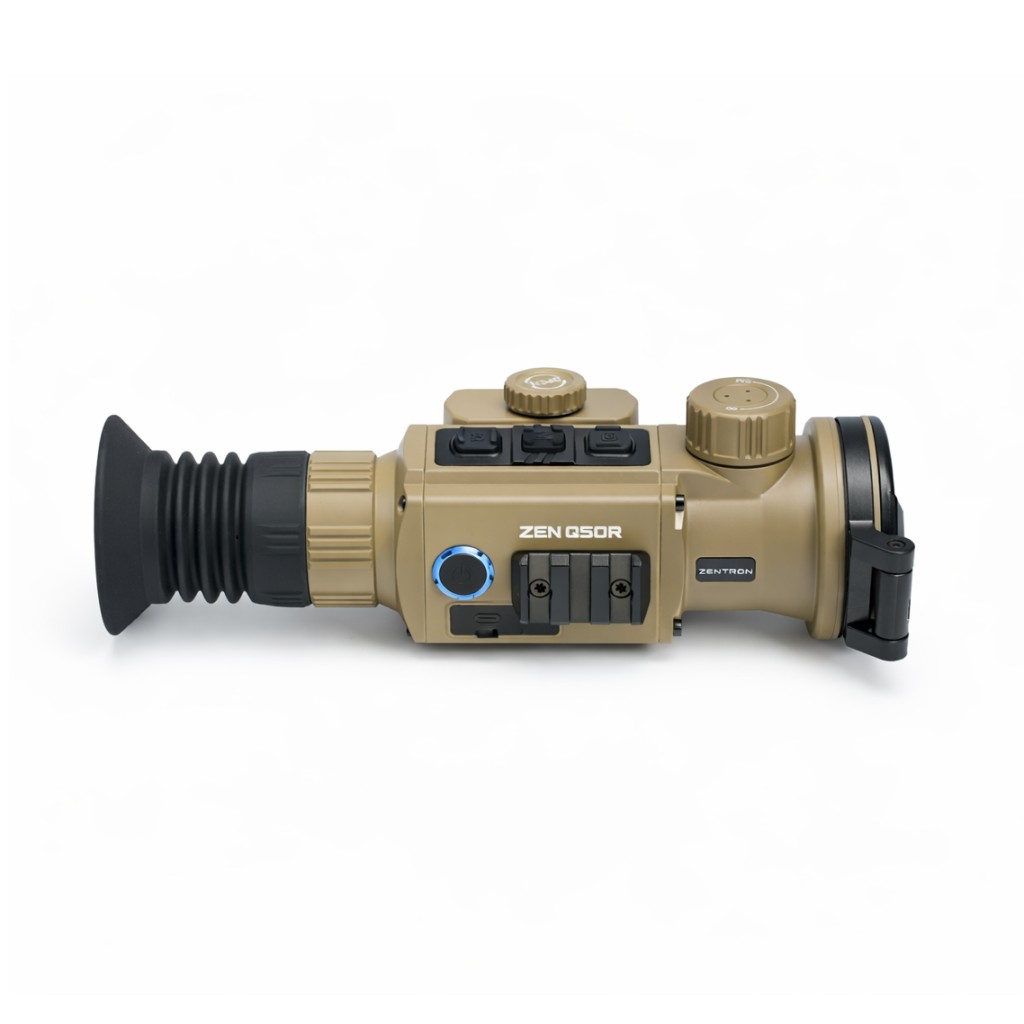

The ZEN Q Series is engineered for hunters and tactical professionals who demand maximum performance in a compact, lightweight thermal optic. Built around a high‑sensitivity VOx detector, it delivers exceptional imaging clarity, revealing even the smallest temperature differences for precise target identification in complex environments.
With a 2600 m detection range, digital compass, silent‑touch controls, and IP67‑rated magnesium‑alloy housing, the ZEN Q Series combines rugged durability with refined usability. Dual 18350 batteries provide extended runtime, while the integrated media library and ZEN LINK app streamline recording, reviewing, and sharing footage.
Designed for field reliability and effortless operation, the ZEN Q Series is a powerful companion for demanding outdoor missions.
Main Features
- Lightweight — Compact magnesium‑aluminium housing, only 423 g.
- 2600 m detection — Long‑range thermal target identification.
- Digital compass — Real‑time directional awareness.
- Auto screen‑off — Saves power and maintains stealth.
- IP67 protection — Fully sealed, weather‑proof, dust‑proof.
- Excellent imaging — High‑sensitivity detector reveals fine temperature details.
- Compact & lightweight — Durable, ergonomic field design.

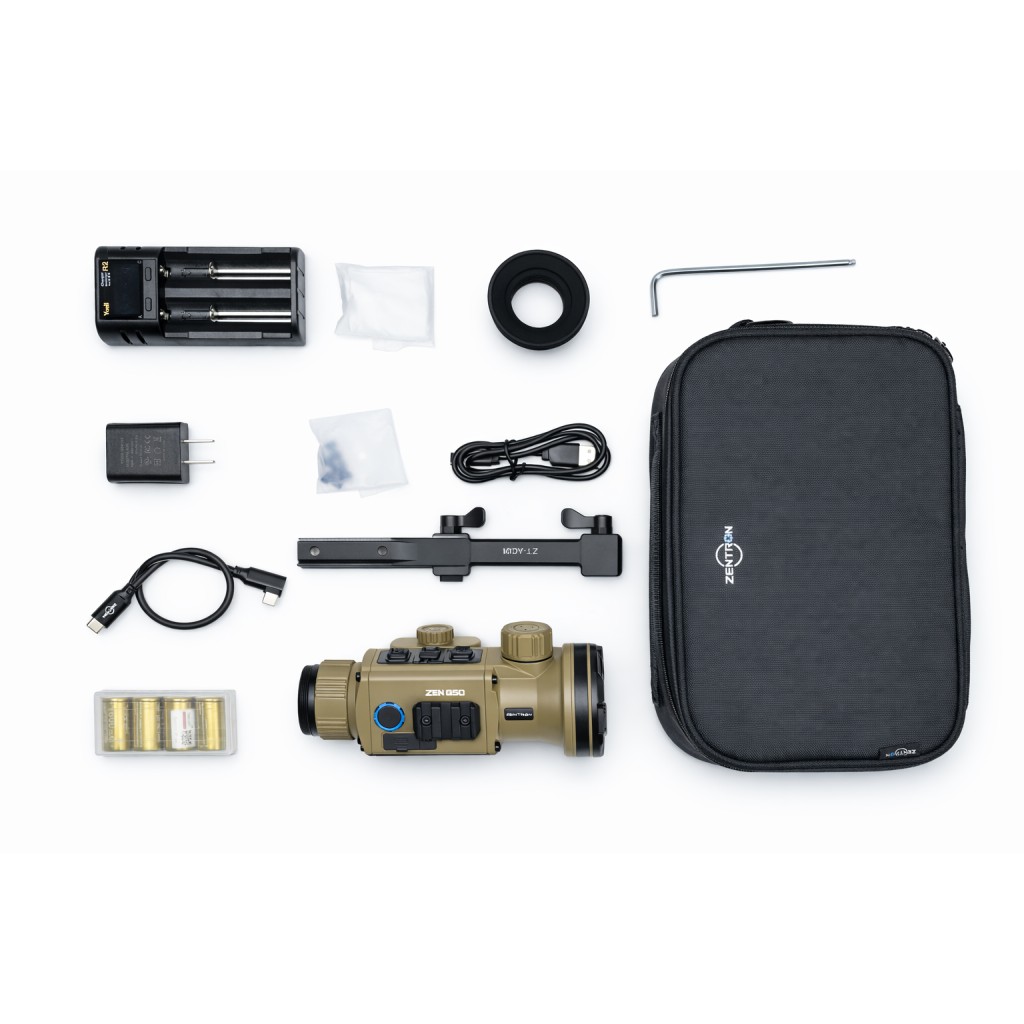

- Long battery life — Up to 6 h runtime; includes 4 rechargeable batteries.
- Media library — View and manage photos/videos directly on the device.
- Silent buttons — Noise‑free operation for hunting and tactical use.
- Pre‑record — ZEN LINK app auto‑transfers pre/post‑shot video clips.
Specifications
|
Parameter |
Q50R/Q50 | Q635 |
| Detector type | VOx uncooled | |
| Resolution | 640×512 | |
| Pixel size | 12 µm | |
| Framerate | 50 Hz | |
| Spectral range | 8–14 µm | |
| NETD | Q50R <18 mK / Q50 <20 mK | <20 mK |
| Objective lens | 50 mm f/1.0 | 35 mm f/1.0 |
| Field of view | 8.7° × 7° | 12.5° × 10° |
| Close‑up range | 5 m | |
| Detection range | 2600 m | 1800 m |
| Optical magnification | 2.3× | 1.6× |

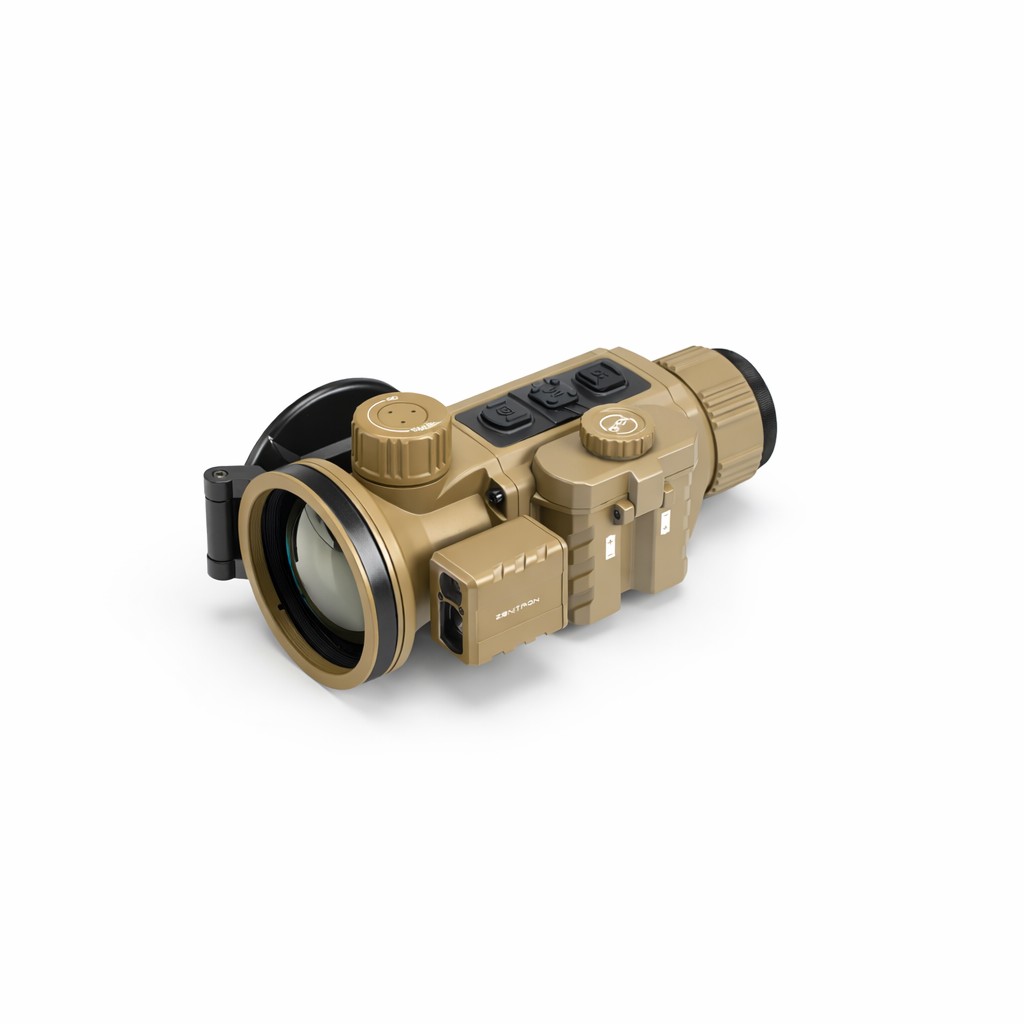

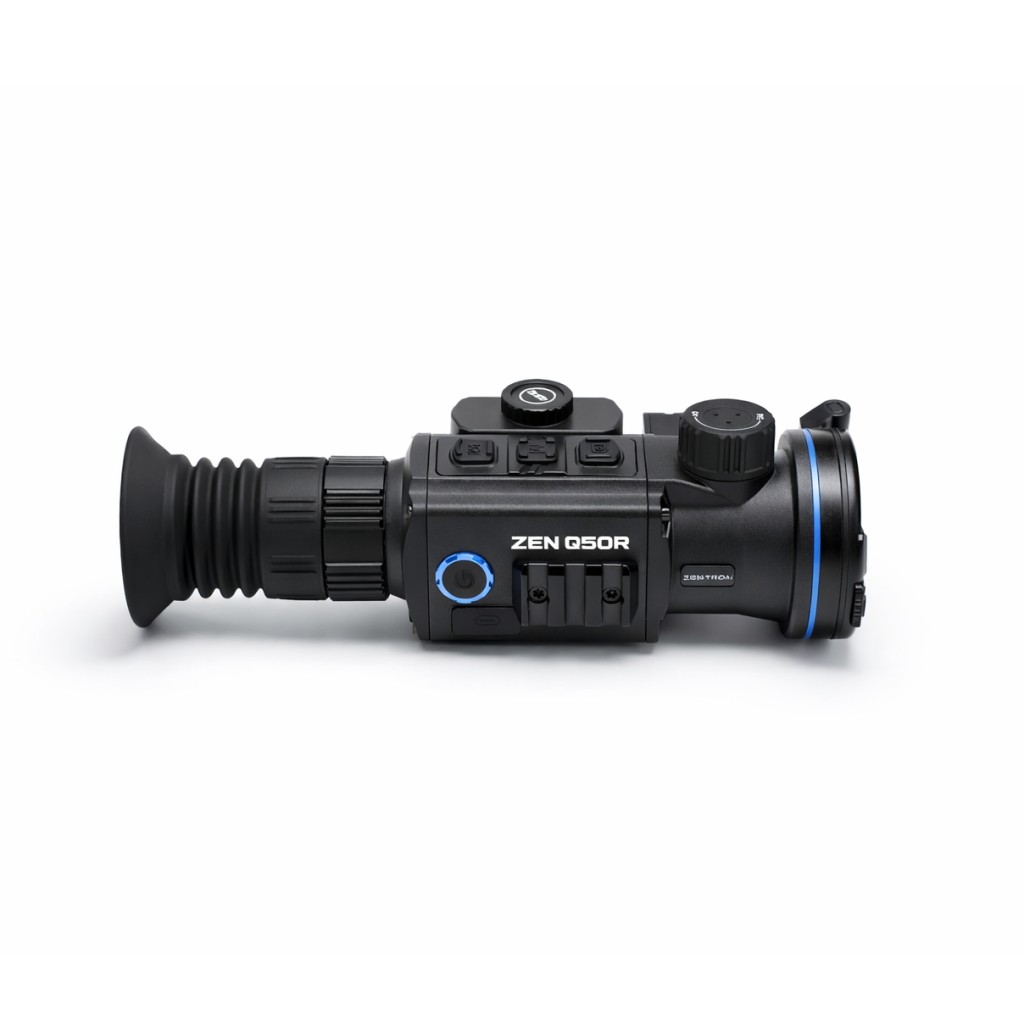

| Laser rangefinder | Class 1, 905 nm, 1200 m, ±1 m, min 5 m | — |
| Battery | 2×18350 | |
| Max battery life | 6 h | |
| USB interface | Type‑C | |
| Size | 158×65×74 mm | 150×65×63 mm |
| Weight | Q50R 474 g / Q50 423 g | 445 g |
| Display type | OLED | OLED |
| Display resolution | 1920×1080 | |
| E‑zoom | 2.3–18.4× | 1.6–12.8× |
| Palettes | White/Black/White highlight/Cold green/Green white… | |
| Reticle types | 8 | |
| Reticle colors | 6 | |
| WiFi / BT / Mic | Yes | |
| Built‑in memory | 64 GB | |
| PiP | ×2 / ×4 / ×8 | |
| Eye relief | 52 mm | |
| Diopter | −5…+5 | |
| Housing | Magnesium | |
| Protection | IP67 | |
| Operating temp | −20…+50 °C | |
| Storage temp | −40…+50 °C | |
| Max recoil | 1200 g/ms | |
