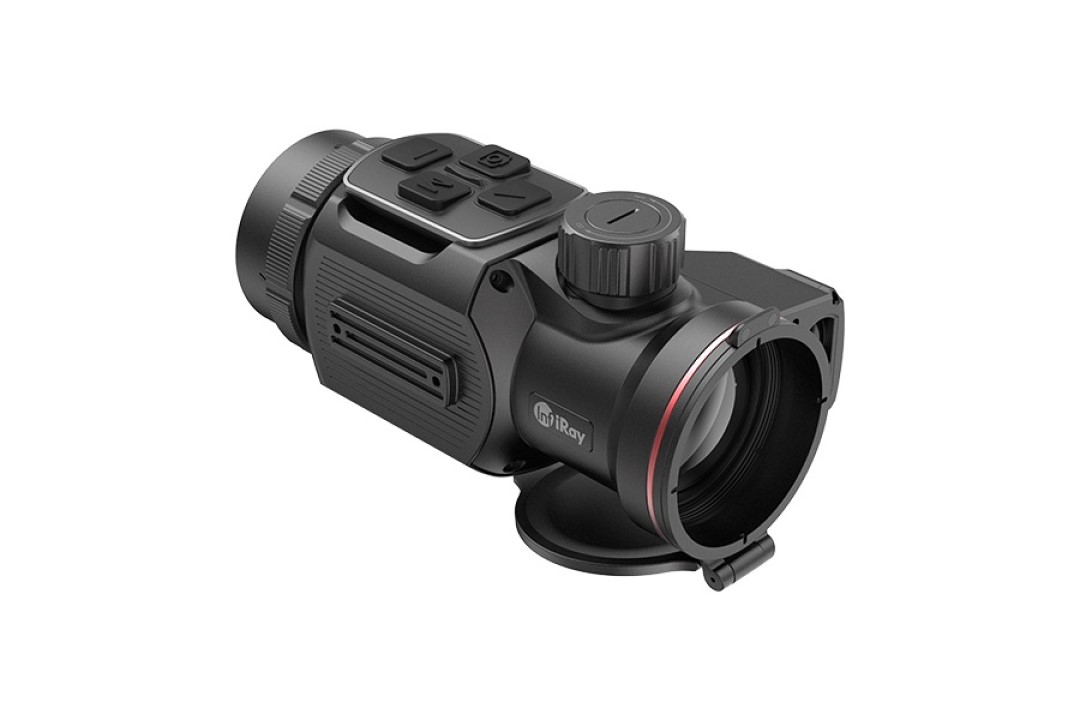

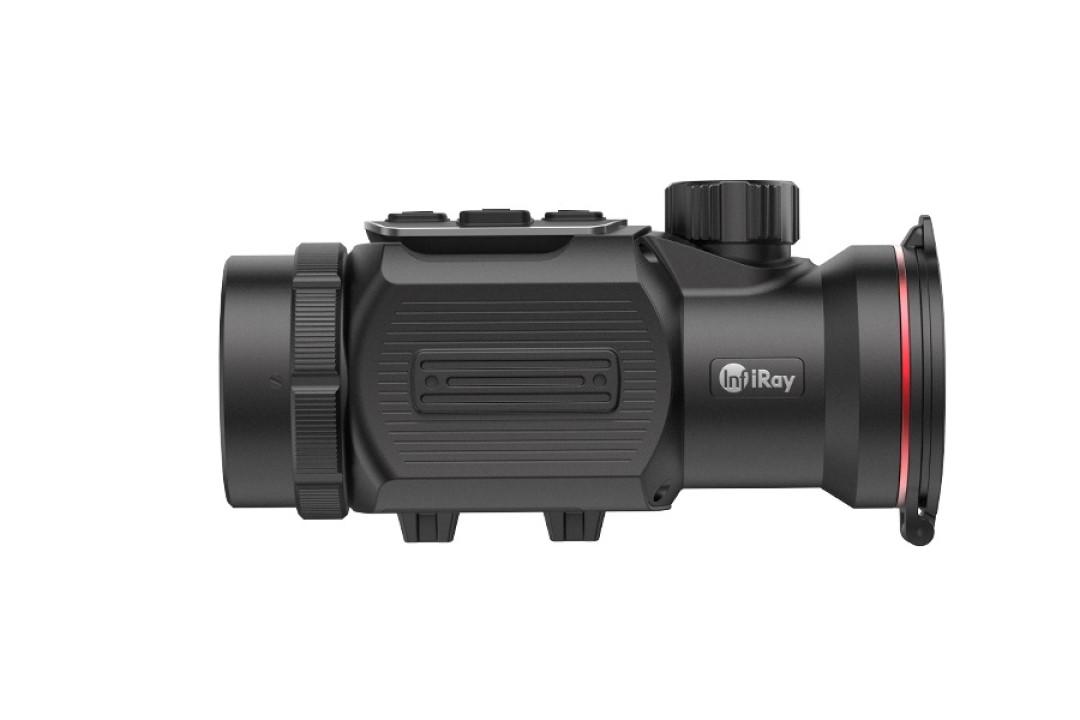

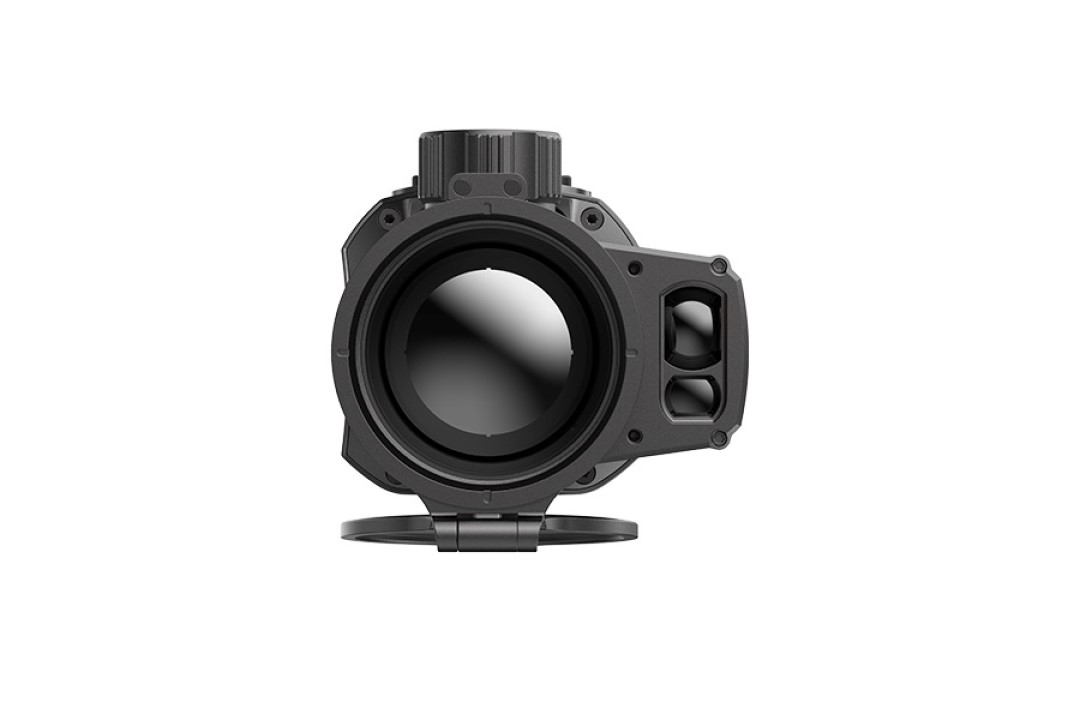

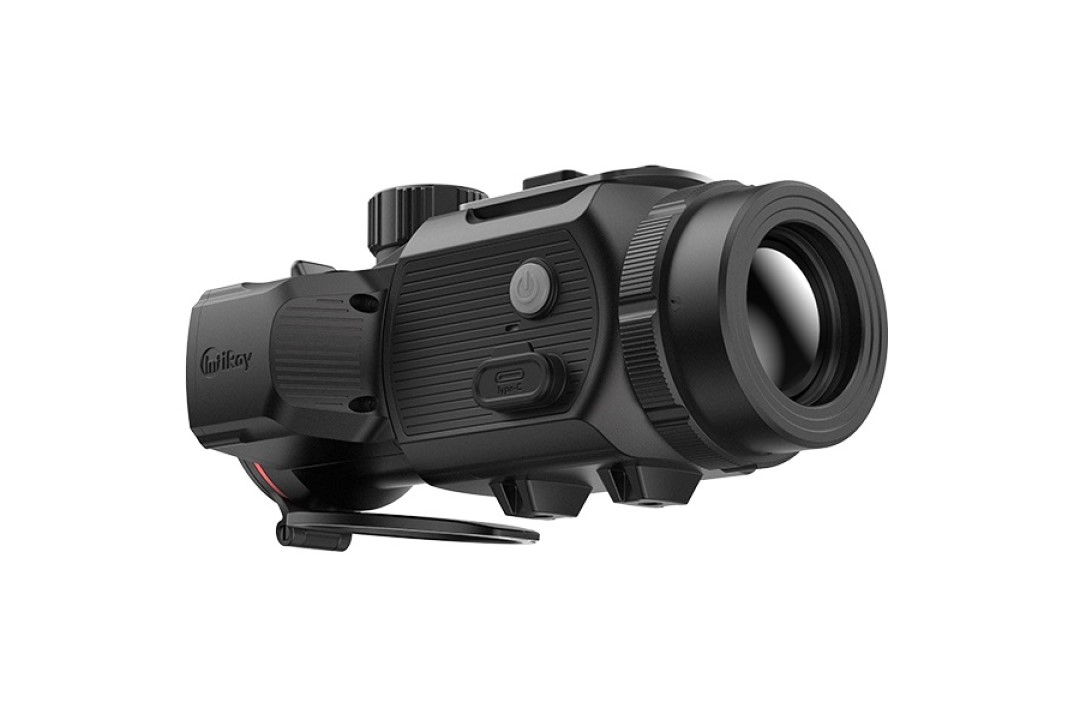

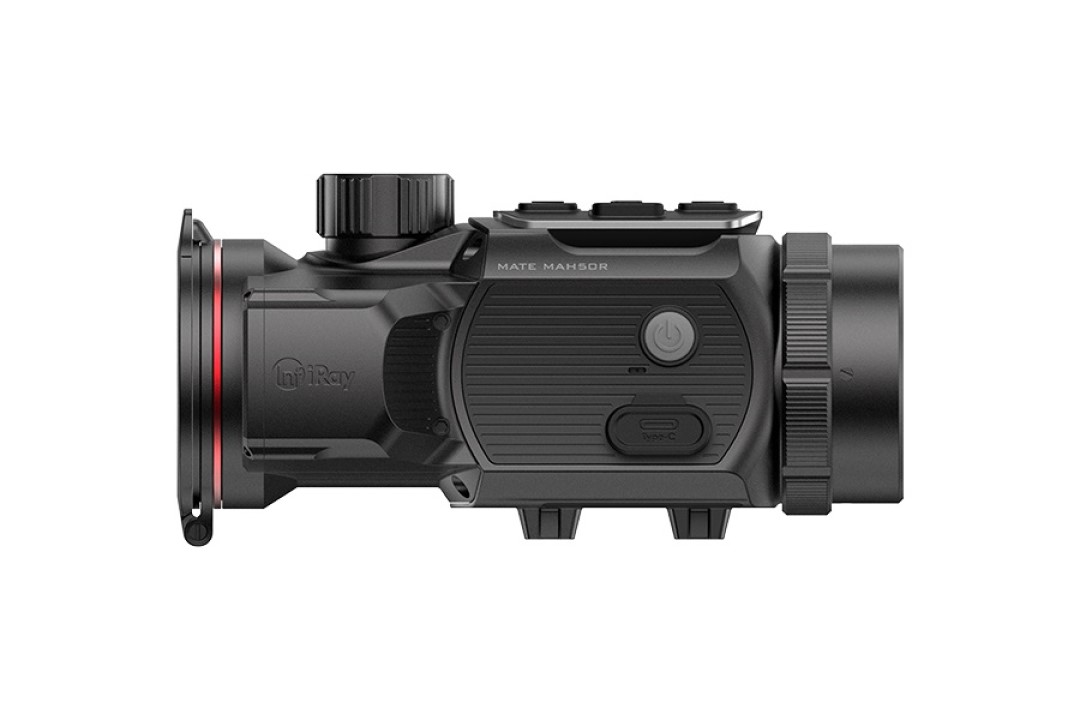

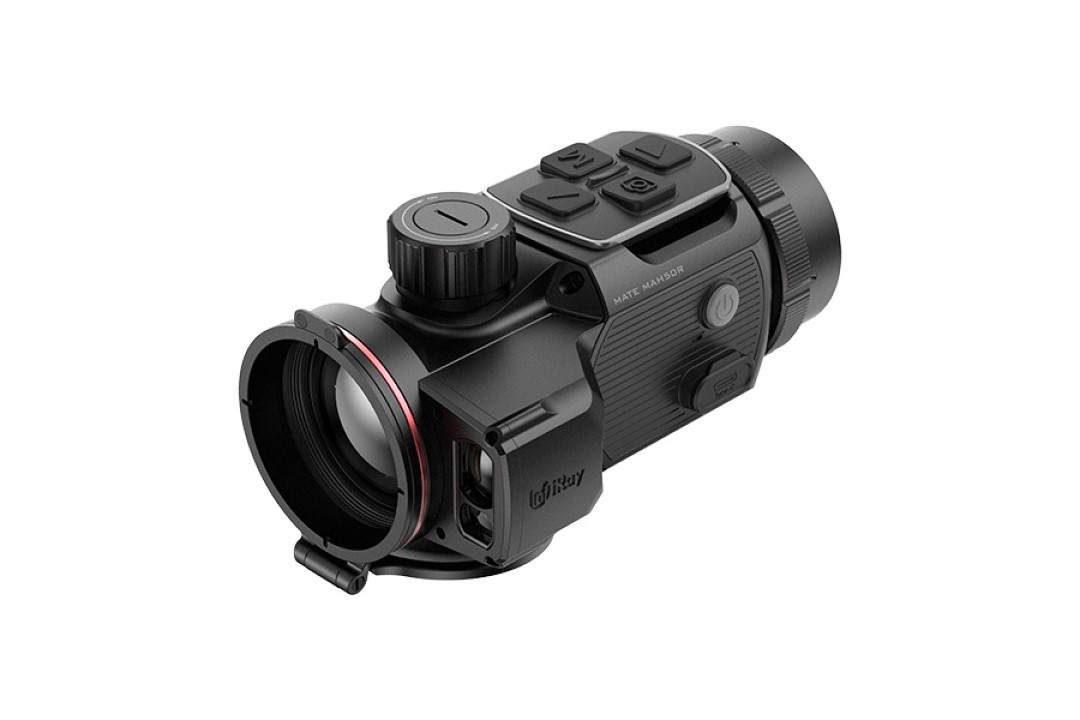

InfiRay introduces the Mate MAH50R, an advancement of the proven MAH50 with even better image quality and new features. In addition to the outstanding performance data offered by the MAH50, the MAH50R introduces new extra features, such as a rangefinder and detachable battery packs.
Mastering Distances with Integrated LRF
The integration of a laser rangefinder (LRF) with an impressive range of up to 1200 meters is a standout feature. This significantly enhances precision and safety for long-range hunting. Instead of the control unit (remote control), additional magnetic battery packs can now be installed on the device to further extend its runtime.
Ultra-clear Thermal Imaging
The contrast sharpness and overall image quality are significantly better than the predecessor model, making this device a real highlight. This, combined with the very sensitive sensor technology now with <18mk and 12μm pixel pitch, results in a much more harmonious and clearer thermal image. With the new Mate, up to 10x magnifications can be used on the daylight optics in terms of image quality.
Thanks to the 640 x 512 pixel resolution, the Mate MAH provides ultra-precise adjustment in the X and Y axes of 1 MOA, making it one of the most precise thermal imaging attachments on the market. The adjustment of only one MOA (29.4mm) allows extremely fine-tunable point-of-impact adjustments.
Accuracy with Ballistic Calculation
Additionally, the device supports, as a new highlight, ballistic calculations that enable users to accurately predict the trajectory of projectiles. This feature contributes to increasing the likelihood of a successful hit while minimizing the risk of accidents.
Magnetic Battery Packs
The device features an internal battery that provides a runtime of up to approximately 4 hours. With the two additional battery packs, the runtime can be extended by another 5 hours, resulting in a total battery life of 9 hours.
As usual with InfiRay, four different shooting profiles can be stored and selected. Furthermore, the device has a Wi-Fi interface with app support and can capture images/videos of your hunting experiences.

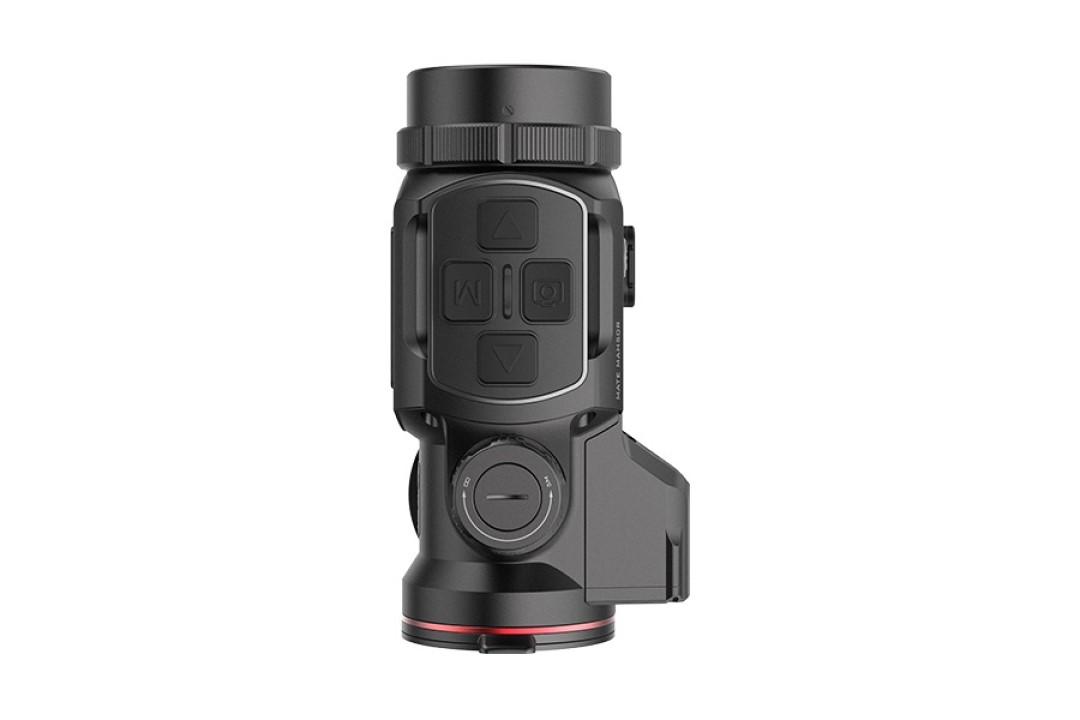

The main control panel on the top of the Mate can be unfolded and used simultaneously as a Bluetooth remote control, allowing all settings to be made ergonomically and comfortably by the user. In addition to the remote control, the included battery packs can also be installed at this point.
Monocular Extension
MAH50 will function as a thermal imaging monocular when used with the IOM accessory. The IOM can also be used as an optic scope independently.
Technical Specifications – InfiRay Mate MAH50R:
- Detector: 640 x 512 @12μm, VOx
- Focal Length: 50mm
- NETD: ≤18mK
- Aperture: F1.1
- Display: 1024 x 768 Pixel (AMOLED)
- Field of View (FOV): 8.8 x 7.0°
- FOV at 100m: approx. 15.4m
- Frame Rate: 50Hz
- Magnification: 1-4x (Digital)
- Detection Range: 2,600
- Digital Zoom: 1x, 2x, 4x
- Color Palettes: Black Hot, White Hot, Red Hot, Thermography Color
- Diopter Adjustment: Yes
- Wi-Fi / App: Yes
- Rangefinder: LRF up to 1200m
- Photo Capture: Yes
- Video Capture: Yes
- Remote Control: Yes
- Bluetooth: Yes for Remote Control
- Battery Life: 4 Hours (+5 Hours)
- Battery Type: Internal Li-Ion Battery + 2 Battery Packs
- Internal Storage: 32 GB
- Operating Temperature: -20° C / + 50 ° C
- Interfaces: USB-C
- Protection: Class IP67
- Weight: 500g
- Dimensions: 147 x 75 x 73 mm
